Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC3012P Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$75-90/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Packet Buffer Memory: |
1 Mbit |
Max Packet Length: |
9K Bytes |
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Packet Buffer Memory: |
1 Mbit |
Max Packet Length: |
9K Bytes |

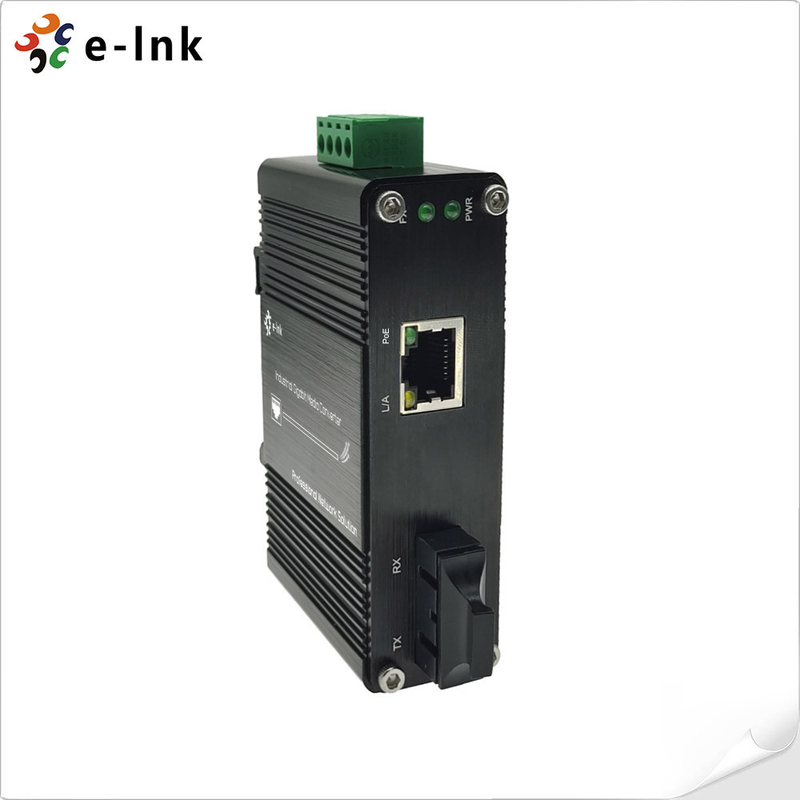

Fiber Media Converter 30W POE Mini Industrial Gigabit 10/100/1000M SC Port
Fiber Media Converter Advantages
Specifications
|
Ethernet |
|
|---|---|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2048K MAC Addresses |
|
Interface |
|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x 1000Base-X SC |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Output Power |
48VDC |
|
Power Consumption: |
36W Max. |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
Overview
The LNK-IMC3012P Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 30W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3012P Series is easy to mount on a DIN rail or in distribution boxes.
Order Information
| Model | Description |
| LNK-IMC3012P | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3012P-2 | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC3012P-20 | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3012PS-20 | Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
