Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC208P-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/Month
Keyword: |
Industrial PoE Switch |
Connector: |
8 X RJ45 |
Data Rate: |
10/100/1000Mbps |
Port Type: |
RJ45/SFP |
Power Over Ethernet: |
IEEE 802.3af/at |
Warranty: |
5 Years |
Keyword: |
Industrial PoE Switch |
Connector: |
8 X RJ45 |
Data Rate: |
10/100/1000Mbps |
Port Type: |
RJ45/SFP |
Power Over Ethernet: |
IEEE 802.3af/at |
Warranty: |
5 Years |

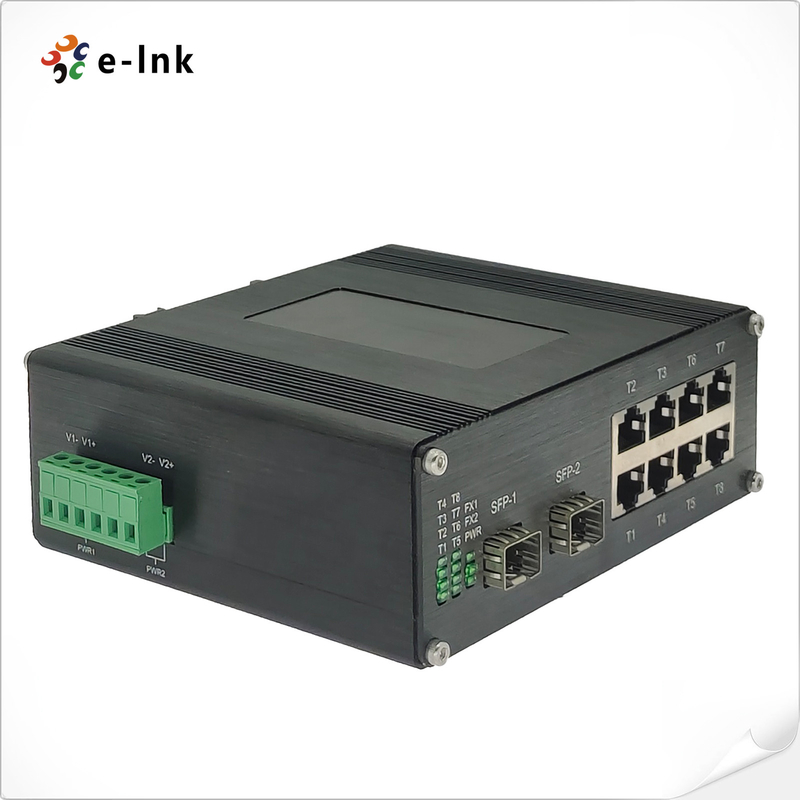

Industrial PoE Switch Switch PoE 8 Port PoE Unmanaged Switch
Industrial PoE Switch Advantages
► 8 10/100Base-TX + 2 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Technical Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 253W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet(Per Port): | Link/Activity |
| Fiber: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 110 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
Overview
LNK-IMC208P Series is an 8 ports 10/100Base-TX + 2 port 100Base-FX Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC208P | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC208P-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC208PS-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC208PF-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC208P-SFP | Industrial 8-port 10/100BASE-T (8-port PoE+) + 2-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
