Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-IMC1200P60 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$75-90/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Feature: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
POE: |
IEEE802.3at Power Over Ethernet |
Forward Filter Rate: |
148,800pps (100Mbps) |
Fiber Port: |
1 X SC 100Base-FX |
Power Input: |
48~57VDC, 2-pin Terminal Block |
Power Output: |
48VDC |
Feature: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
POE: |
IEEE802.3at Power Over Ethernet |
Forward Filter Rate: |
148,800pps (100Mbps) |
Fiber Port: |
1 X SC 100Base-FX |
Power Input: |
48~57VDC, 2-pin Terminal Block |
Power Output: |
48VDC |

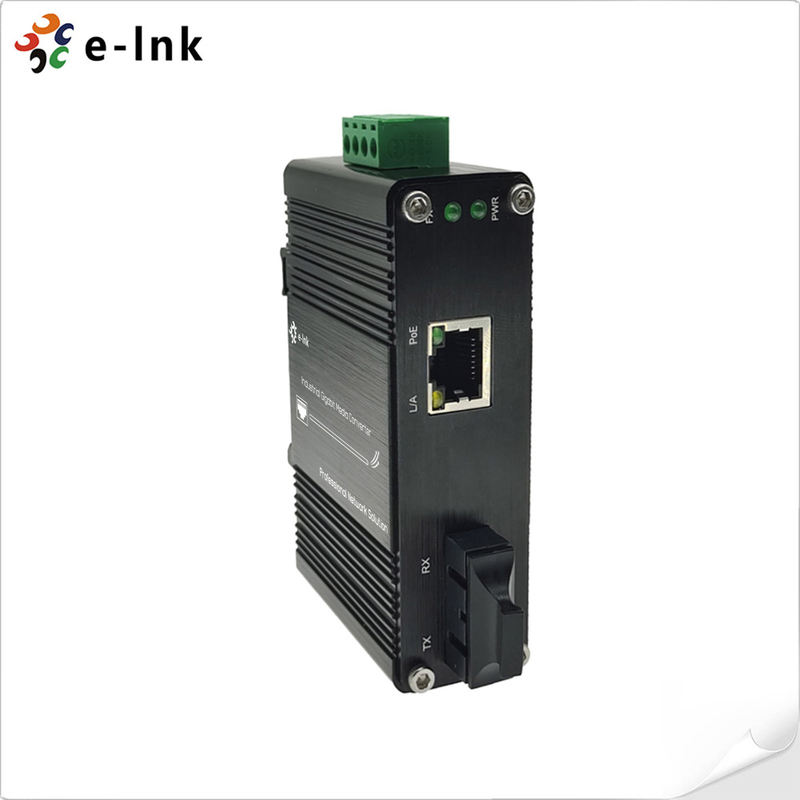

60W POE Fiber Media Converter Industrial 1x100M SC + 2x10/100M Ethernet RJ45
Fiber Media Converter Advantages
Specifications
|
Interface |
|
|---|---|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SC 100Base-FX |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, 2-pin terminal block |
|
Output Power |
48VDC |
|
Power Consumption: |
125W Max. |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Order Information
| Model | Description |
| LNK-IMC1200P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1200P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1200P60S-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
