Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-GYM7208GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500PCS/Month
PoE Standard: |
8x IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
Max. PoE Output Power Budget 30W |
Power Consumption: |
Full-load<15W (Not Use PoE) |
Operating Temperature: |
-40℃~80℃ |
Dimensions: |
138mm X 106mm X 41mm |
Data Rate: |
10/100/1000 Mbps |
PoE Standard: |
8x IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
Max. PoE Output Power Budget 30W |
Power Consumption: |
Full-load<15W (Not Use PoE) |
Operating Temperature: |
-40℃~80℃ |
Dimensions: |
138mm X 106mm X 41mm |
Data Rate: |
10/100/1000 Mbps |
Industrial PoE Switch Industrial 8 Port PoE Switch Managed Gigabit Switch
Industrial PoE Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► DHCP RFC 1541, 1542
Technical Indexes
| Physical Port | |
| RJ45 port and speed | 8x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 2x1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters | |
| Ethernet standards |
IEEE 802.1x authentication IEEE 802.1q-Tagging IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree IEEE 802.3ad Trunking IEEE 802.3x flow control IEEE 802.1D Spanning Tree IEEE802.1ab LLDP |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 1532Bytes |
| MAC address table | 16K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
Overview

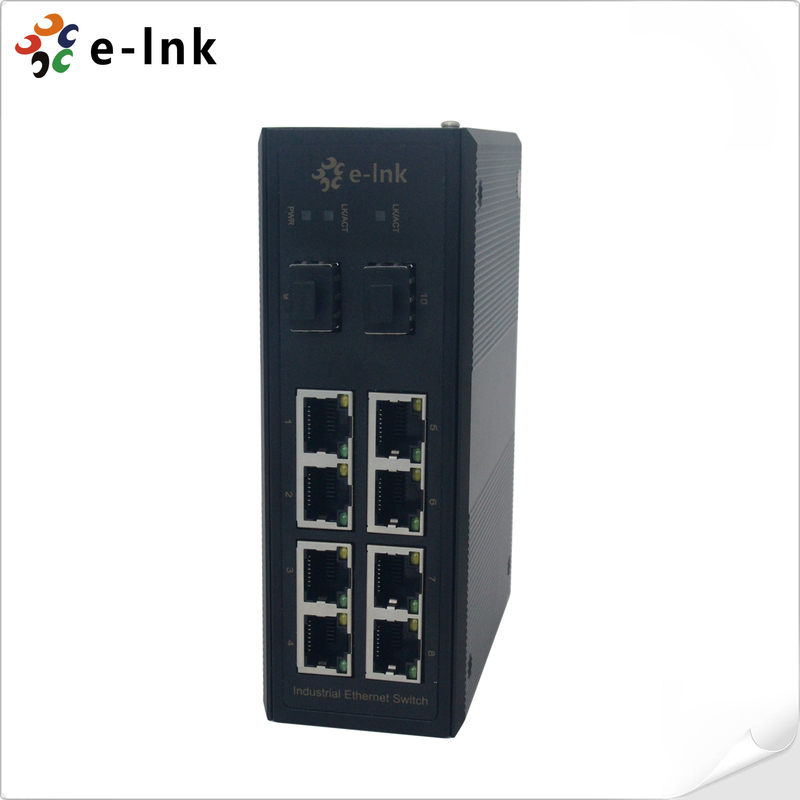

LNK-GYM7208GP-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-T 802.3at PoE+ and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
Ordering Information
| Model | Description |
| LNK-GYM7208GP-SFP | Managed 8-Port 10/100/1000Base-T PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
