Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-IMC1200GP90-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 1000pcs/Month
Standards: |
IEEE802.3bt Power Over Ethernet |
Switching Buffer: |
1 Mbit |
Optical Port: |
Optical Port: 1 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
Storage Range: |
-40°C To 85°C (-40°F To 185°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Moisture Content: |
5% To 95% Non-condensing |
Standards: |
IEEE802.3bt Power Over Ethernet |
Switching Buffer: |
1 Mbit |
Optical Port: |
Optical Port: 1 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
Storage Range: |
-40°C To 85°C (-40°F To 185°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Moisture Content: |
5% To 95% Non-condensing |
Model:LNK-IMC1200GP90-SFP
Overview

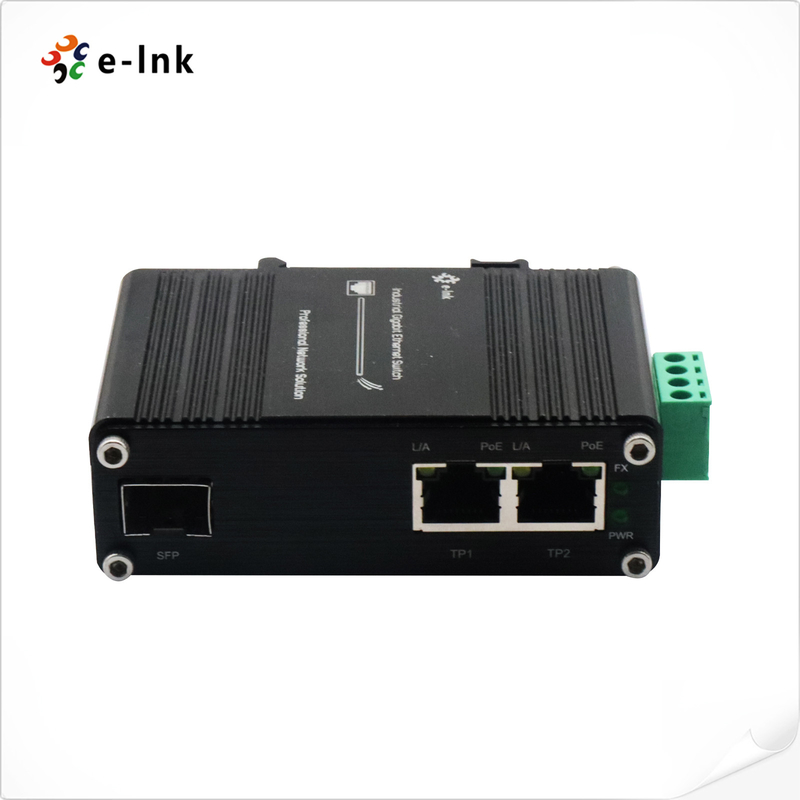

The LNK-IMC1200GP90-SFP is a DIN rail-mounted media converter that supports external SFP
modules and meets EN55022 standards. It offers 90W PoE++ via the Ethernet port, compliant with
IEEE802.3bt. Designed for harsh environments, it operates in temperatures from -40°C to +75°C.
It supports 10/100/1000Base-T and 100/1000Base-X SFP ports, with both half-duplex and full-duplex modes.
Users can select from various SFP modules (single-mode/multi-mode fiber, 1/2 core) to suit their needs.
Features
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 185W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| PoE: | PD Plug Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Application
Ordering Information
| Model | Description |
| LNK-IMC1200GP90-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
