Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-GYM0816GP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500PCS/Month
Keyword: |
Industrial PoE Switch |
Protection Grade: |
IP40 Aluminum Case |
Installation Mode: |
DIN Rail/Wall-mountable |
Operating Temperature: |
-40℃~80℃ |
Weight: |
1.2Kg |
Warranty: |
5-Year |
Keyword: |
Industrial PoE Switch |
Protection Grade: |
IP40 Aluminum Case |
Installation Mode: |
DIN Rail/Wall-mountable |
Operating Temperature: |
-40℃~80℃ |
Weight: |
1.2Kg |
Warranty: |
5-Year |

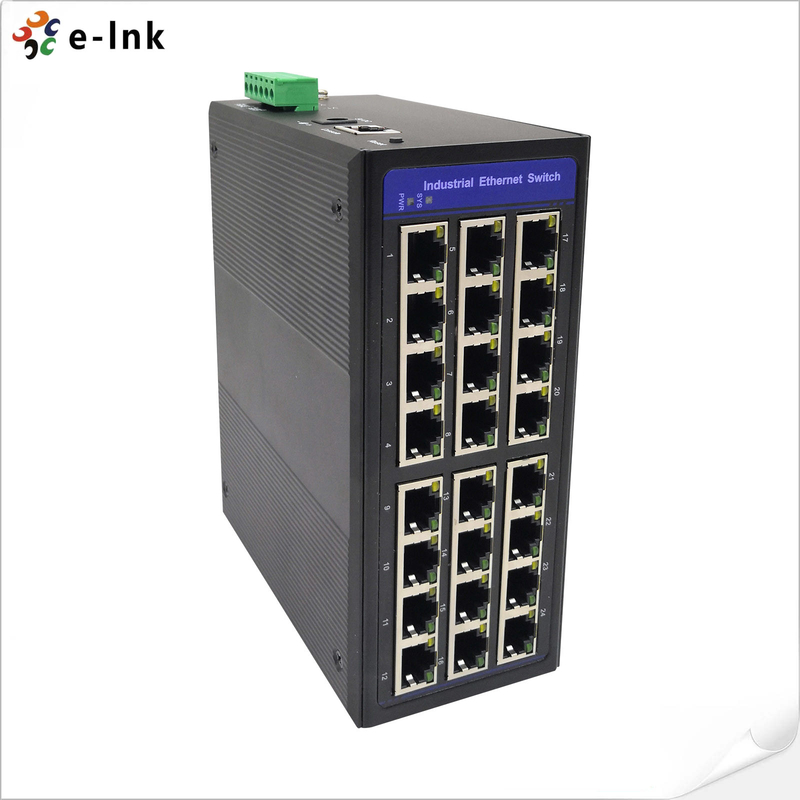

Industrial PoE Switch 24 Port Industrial Ethernet Switch Managed PoE Switch
Industrial PoE Switch Advantages
► 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 8KV surge protection,
► Status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Installation method: DIN Rail /Wall mounting
Technical Indexes
| Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ad port trunk with LACP IEEE 802.3ah Configuring Ethernet OAM IEEE 802.1D Spanning Tree Protocol IEEE 802.1x Port Authentication Network Control IEEE 802.1Q VLAN tagging IEEE 1588 |
| Power Information | |
| Redundant power input | DC 48-57V |
| Software | |
| Software Features | Redundant network: STP, EAPS/ERPS |
| Multicast: IGMP Snooping V1/V2/V3, GMRP | |
| VLAN: IEEE 802.1Q 4K VLAN, QINQ | |
| Link Aggregation: manual / static / LACP | |
| QOS: COS, DSCP, 8 queues, WRR/SP/WFQ scheduling, QOS Policy | |
| Management Function: CLI/WEB/SNMP, and Primestone NIS management system | |
| Diagnostic Maintenance: Port mirroring, Syslog, Ping | |
| Alarm management: 1 way relay alarm output, RMON, SNMP Trap | |
| Security DHCP Snooping, Option 82, 802.1X, User hierarchical management, ACL,DDOS, port based MAC filtering / binding | |
| Data control: Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression. | |
Overview
LNK-GYM0816GP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 16-Port 10/100/1000Base-T 802.3at PoE and 8-port 10/100/1000T that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
With dual power input design, LNK-GYM0816GP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Ordering Information
| Model | Description |
| LNK-GYM0816GP | Managed Industrial 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
