Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-M3011-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pairs
Price: Negotiated
Packaging Details: Fiber Media Converter standard export package
Delivery Time: 3-6working days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pairs/day
Fiber Port: |
SFP - 100/1000M Adaptive |
Power Supply: |
DC 5~15V (Type-C) |
Dimensions (W X D X H): |
78 X 27 X 18 Mm |
Connector Type: |
SC/FC/ST |
Data Rate: |
10/100/1000Mbps |
Dimension: |
90mmx70mmx25mm |
Fiber Type: |
Multi-mode/Single-mode |
Fiber Port: |
SFP - 100/1000M Adaptive |
Power Supply: |
DC 5~15V (Type-C) |
Dimensions (W X D X H): |
78 X 27 X 18 Mm |
Connector Type: |
SC/FC/ST |
Data Rate: |
10/100/1000Mbps |
Dimension: |
90mmx70mmx25mm |
Fiber Type: |
Multi-mode/Single-mode |

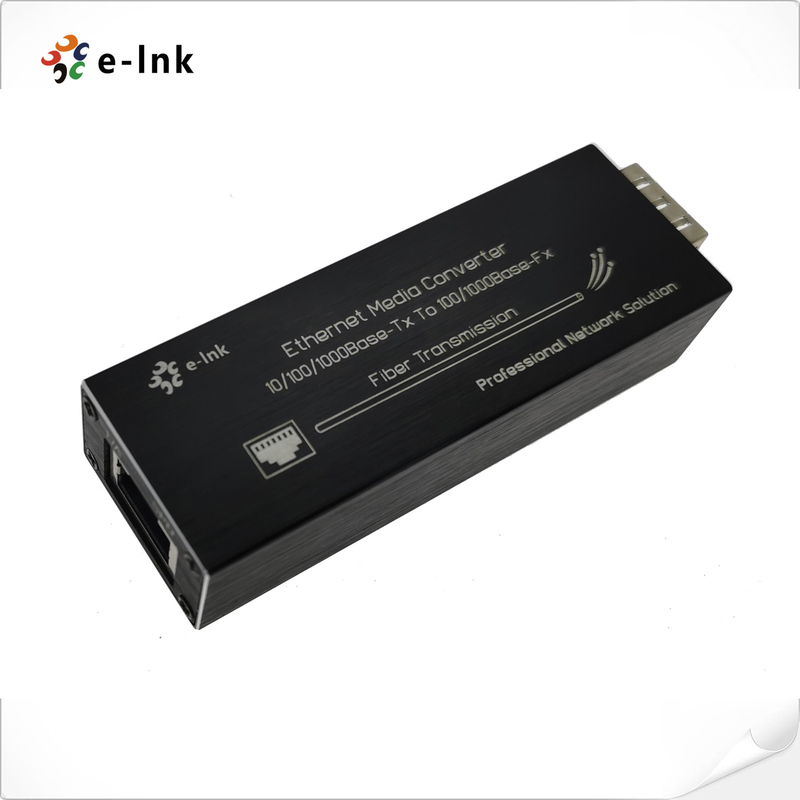

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Advantages
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Overview
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching
technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE
802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX
/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000
Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance
of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in
multi-mode dual fiber, single mode dual fiber and single mode single fiber. When plugged into a
computer’s USB port, the media converter shuts down automatically when you turn off the computer,
which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop
applications where you need Gigabit fiber connectivity but local power isn’t available.
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port | 1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Application
Ordering Information
| Model | Description |
| LNK-M3011-SFP | Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, standalone, external power adaptor |
