Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-3011WSFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Fiber Optic Media Converter |
Power Supply: |
AC90~240V Input External |
Access Mode: |
10/100/1000Mbps Gigabit Ethernet |
Connector: |
SC/FC/ST |
Fiber Type: |
Single-mode/Multi-mode |
Wavelength: |
850nm/1310nm/1550nm |
Dimensions: |
71 X 94 X 26 Mm |
Operating Temperature: |
-10~55ºC |
Keyword: |
Fiber Optic Media Converter |
Power Supply: |
AC90~240V Input External |
Access Mode: |
10/100/1000Mbps Gigabit Ethernet |
Connector: |
SC/FC/ST |
Fiber Type: |
Single-mode/Multi-mode |
Wavelength: |
850nm/1310nm/1550nm |
Dimensions: |
71 X 94 X 26 Mm |
Operating Temperature: |
-10~55ºC |

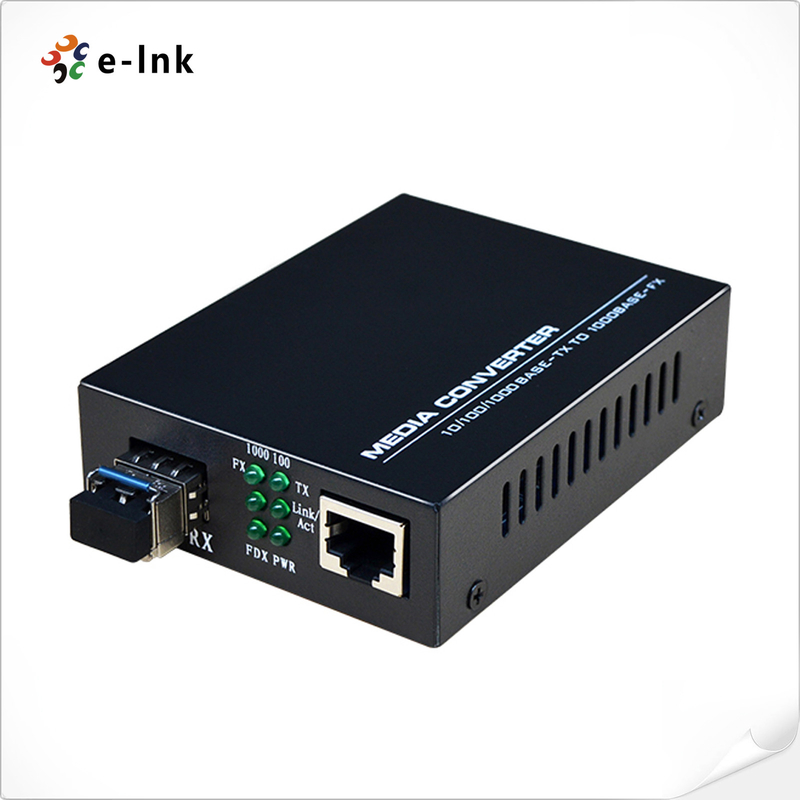

Fiber Media Converter 10/100/1000Mbps Gigabit Ethernet External Power Supply SFP Media Converter
Fiber Optic Media Converter Advantages
► Supporting inter-conversion between adaptive
► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Fiber Media Converter 10/100/1000Mbps Technical Indexes
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Transmission distance | multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) |
| single mode Dual-fiber: 20/40/60/80 Km | |
| single mode Single fiber: 20/40/60/80 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V | |
| MTBF | 100,000 hours |
| LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply | External Power: AC90~240V input, 5V2A output |
| Power consumption | 5W |
Ethernet Media Converter External Power Supply Overview
LNK-3011WSFP is an Ethernet media converter that converts media transmission between UTP Copper cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120 km via fiber optical cables.
SFP Fiber Media Converter Single Mode Ordering Information
Model | Description |
LNK-3011WSFP | 10/100/1000Base-T to 1000Base-F Fiber Media Converter, SFP slot, excl. SFP module, standalone, external power adaptor |
