Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-3011S-20
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: Fiber Media Converter standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Access Mode: |
10/100/1000Mbps Gigabit Ethernet |
Dimensions (W X D X H): |
71 X 94 X 26 Mm |
Connector Type: |
SC/ST/FC/LC |
Data Rate: |
10/100/1000Mbps |
Distance: |
2km/20km/40km/60km/80km/120km |
Fiber Type: |
Single-mode/Multi-mode |
Access Mode: |
10/100/1000Mbps Gigabit Ethernet |
Dimensions (W X D X H): |
71 X 94 X 26 Mm |
Connector Type: |
SC/ST/FC/LC |
Data Rate: |
10/100/1000Mbps |
Distance: |
2km/20km/40km/60km/80km/120km |
Fiber Type: |
Single-mode/Multi-mode |
Overview

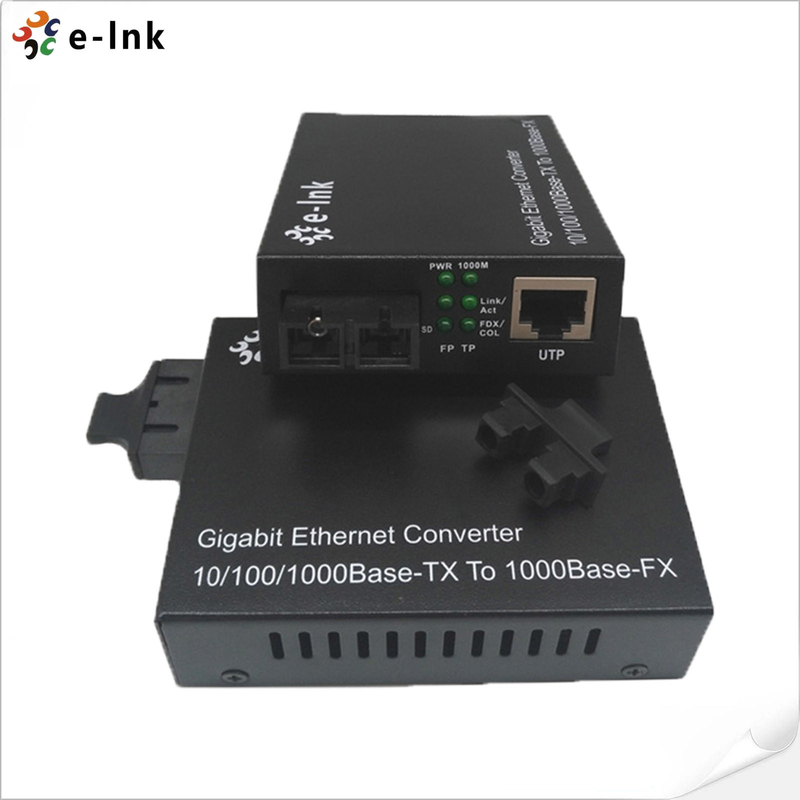

LNK-3011 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to
fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.
Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and
1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs
with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via
copper cable to 20km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode
dual fiber and single mode single fiber.
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm) |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply | DC 5V / 1A |
| Power consumption | 5W |
Application
Ordering Information
| LNK-3011S-20 | 10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
