Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-POE56V
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: PoE Injector Adapter standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Data Rate: |
10/100/1000Mbps |
Input Power: |
90-240V AC ,50-60Hz |
Output Power: |
30W |
Input Frequency: |
50/60Hz |
Input Voltage: |
100-240V AC |
Output Voltage: |
48V DC |
Data Rate: |
10/100/1000Mbps |
Input Power: |
90-240V AC ,50-60Hz |
Output Power: |
30W |
Input Frequency: |
50/60Hz |
Input Voltage: |
100-240V AC |
Output Voltage: |
48V DC |
56VDC 35W 10/100/1000M Gigabit POE Injector Advantages
► Up to 56V 35W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
► Supports 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

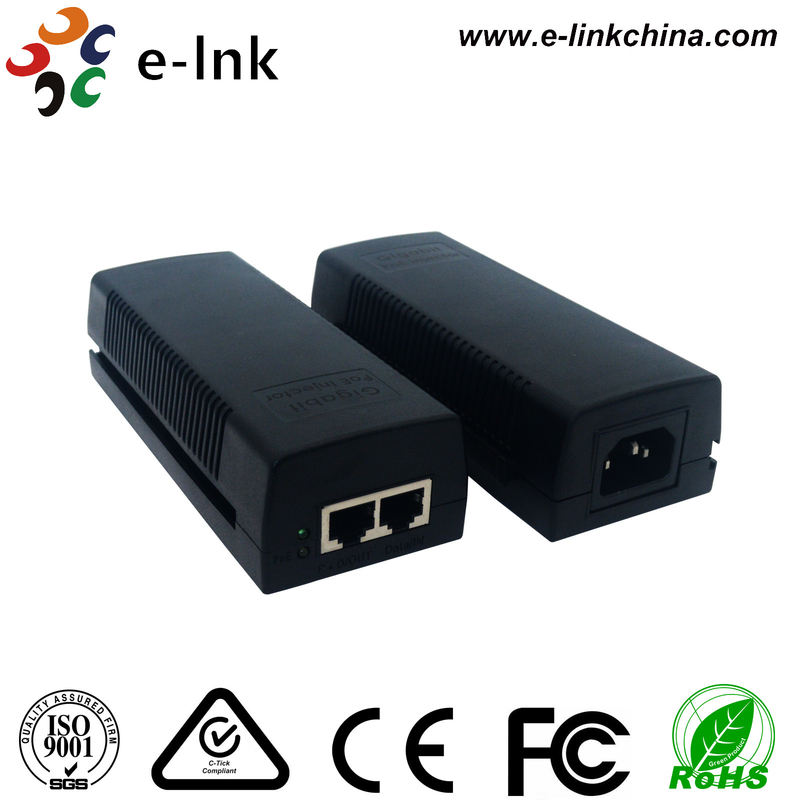

The LNK-POE56V Power over Ethernet (PoE) adapter is designed to supply operational power to
surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables
power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a
power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating
the need for extra power lines and also reducing installation costs and manpower.
Technical Indexes
| Parameter | Specifications |
| Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
| • Data Input Interface RJ-45 10/100/1000Base-TX | |
| • Output Port Power Cable Included | |
| Data Rate | 10/100/1000Mbps |
| Input Power | 90-240V AC ,50-60Hz |
| Output Power | 35W 56VDC |
| Wiring | Data provide over pairs 1/2(+) and 3/6(-) |
| • Power over spare pairs 4/5(+) and 7/8(-) | |
| LED Display | YES |
| Operating Temperature | 0 to +40°C, |
| Humidity | Max. 95% RH(non-condensing) |
| Dimension | 61×40×12(H×D×W) |
| Weight | 200g |
Application
Ordering Information
| LNK-POE56V | PoE Adapter, 10/100/1000Mbps, support 56V 35W PoE power |
