Industrial PoE Switch PoE Extender Outdoor IP65 Waterproof Gigabit

Name: Industrial PoE Switch PoE Extender Outdoor IP65 Waterproof Gigabit
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP001G
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE,FCC,RoSH

Model Number: LNK-WP001G

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: negotiate

Packaging Details: Industrial PoE Switch Standard Export Packages

Delivery Time: 3-6working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Outdoor Industrial PoE Switch, Industrial PoE Switch IP65, Waterproof Outdoor Gigabit Poe Extender


Pass Through Data Rates:	10/100/1000 Mbps Half/full Duplex	Connectors:	Shielded RJ-45, EIA 568A And 568B
Network Cables:	Shielded Category 5 (or Higher)	Dimensions:	140mm X 40mm X 30mm
Mounting:	Wall Of Shelf	Environment:	Outdoor IP65

Pass Through Data Rates:	10/100/1000 Mbps Half/full Duplex
Connectors:	Shielded RJ-45, EIA 568A And 568B
Network Cables:	Shielded Category 5 (or Higher)
Dimensions:	140mm X 40mm X 30mm
Mounting:	Wall Of Shelf
Environment:	Outdoor IP65

Description

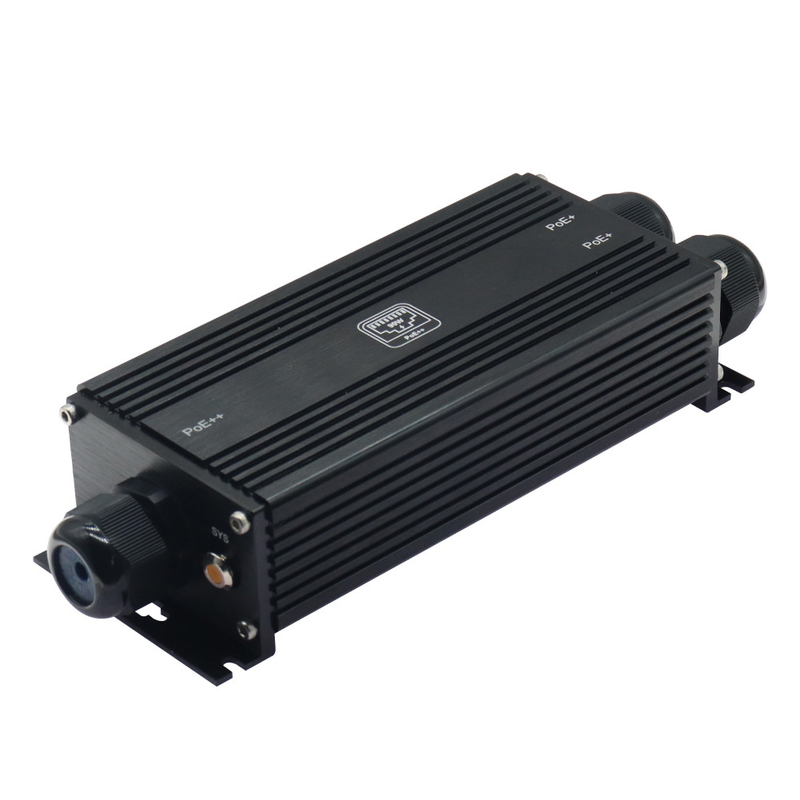

Industrial PoE Switch PoE Extender Outdoor IP65 Waterproof Gigabit

Water-Proof Outdoor Industrial Gigabit PoE Extender

Water-Proof Outdoor Industrial PoE Extender Advantages

Compatible with IEEE802.3af and IEEE802.3at
Extends the range of PoE and Ethernet an additional 100 meters
No additional power supply is required
Automatically detects and protects PoE equipments from being damaged by incorrect installation
Full-rate network throughout the whole extended distance
Compact size, Wall-Mountable design
Easy plug-and-play installation
IP65 aluminum case
Operating Ambient Temperature:-40 to 75℃

Overview

Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this

distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe. With PoE

Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater

distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable,both

Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power

required and power source. PoE Extender does not require any additional power supply and the connected PDs is fed

by an single PoE switch or mid-span, which simplifies installation.PoE Extender offers two Ethernet ports, which are both

configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained.

Technical Indexes

Item	Description
No. of channels	1
Pass Through Data Rates	10/100/1000 Mbps half/full duplex
Power over Ethernet input	Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
Power over Ethernet Output	Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W
Connectors	Shielded RJ-45, EIA 568A and 568B
Network cables	Shielded category 5 (or higher)
Dimensions	140mm x 40mm x 30mm
Mounting	Wall of shelf
Environment	Outdoor IP65
Environmental Conditions	Operating Ambient Temperature:-40 to 75℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 75℃ Storage Humidity: Maximum 95%, Non-condensing
Regulatory Compliance	IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC
Electromagnetic	FCC Part15, Class B

Application

Industrial PoE Switch PoE Extender Outdoor IP65 Waterproof Gigabit 0

Ordering Information

Model	Description
LNK-WP001G	10/100/1000M PoE Extender 15.4W, extends the data transmission from 100m to 500m depending on PDs power required and power source
