Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-IMC608GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD139/PCS
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000PCS/Month
Keyword: |
Industrial PoE Switch |
Optical Port: |
6 X 1000Base-X SFP |
PoE Budget: |
Up To 240-watt PoE Budget |
Casing: |
Aluminum Case |
Input Power: |
48~57VDC |
Operating Temperature: |
-40℃~80℃ |
Keyword: |
Industrial PoE Switch |
Optical Port: |
6 X 1000Base-X SFP |
PoE Budget: |
Up To 240-watt PoE Budget |
Casing: |
Aluminum Case |
Input Power: |
48~57VDC |
Operating Temperature: |
-40℃~80℃ |

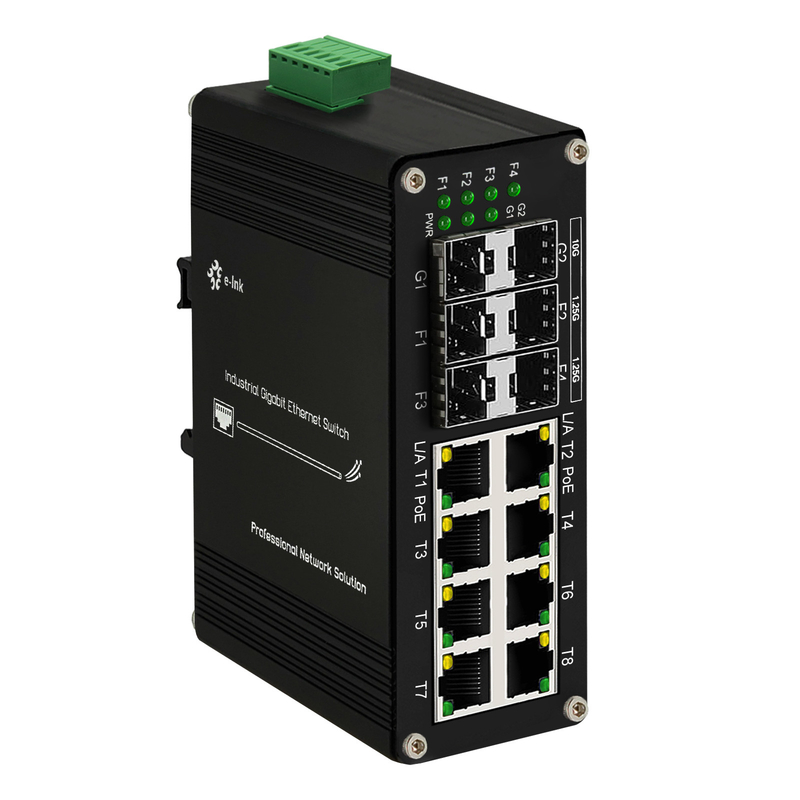

Industrial PoE Switch 8-Port PoE + 10G SFP Ethernet Switch
Industrial PoE Switch Advantages:
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial PoE Switch Technical Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 6 x 1000Base-X SFP |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| ort: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power Status |
| Ethernet(Per Port): | Link/Activity |
| PoE (Optional) | PoE Status |
| Fiber: | Gigabit SFP Port: F1~F6 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
Industrial PoE Switch Overview
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras
and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC608GP-SFP | Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page |
| SFP module is to be purchased separately. | |
| Mounting Options | Default DIN-Rail Bracket installed |
| Power Options | DIN-Rail Power Supply. Open Wire for Terminal Block. |
| Power Supply is to be purchased separately. |
