Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK- MDA4K-S20
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: USD229/pair
Packaging Details: Mini 4K DVI Fiber Extender Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000pair/Month
Name: |
Mini 4K DVI Fiber Extender |
Input: |
DVI |
Connector: |
DVI-D |
Signal Support: |
DVI 1.0 Format Standard And HDCP Compliant |
Power: |
5V DC (USB-C) |
Distance: |
300m |
Name: |
Mini 4K DVI Fiber Extender |
Input: |
DVI |
Connector: |
DVI-D |
Signal Support: |
DVI 1.0 Format Standard And HDCP Compliant |
Power: |
5V DC (USB-C) |
Distance: |
300m |

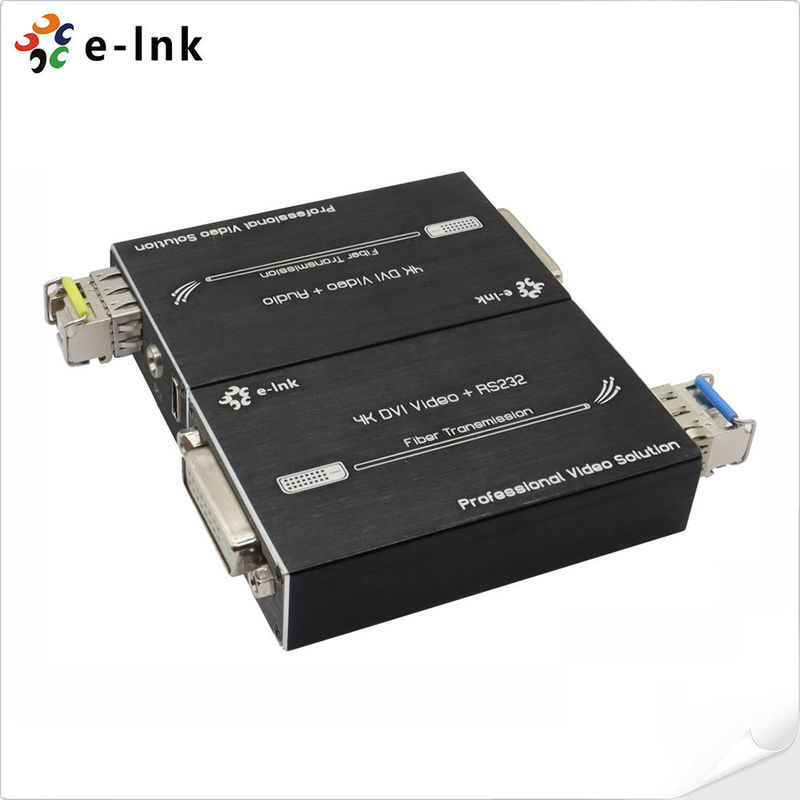

Mini 4K DVI Fiber Extender With Stereo Audio
Mini 4K DVI Fiber Extender Advantages:
DVI 1.0 and HDCP1.2 Support
Transmission distance up to 80km over fiber cable
Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
Support 3.5mm External Stereo Audio
Mini 4K DVI Fiber Extender Specifications
| Signal Support | DVI 1.0 format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
| Audio Interface | 3.5MM external stereo audio |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) |
The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal
and audio signal up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.
Mini 4K DVI Fiber Extender Ordering Information
| Model | Description |
| LNK-MDA4K-MM | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S20 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S40 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S80 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
