Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-107M
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Optic To HDMI Converter |
Video Support: |
4K 30Hz, 1080P 60Hz |
Power Input: |
5VDC USB |
Fiber Port: |
Simplex LC Connector |
Cable: |
OM3 Multi-mode Fiber |
Transmission Distance: |
300M |
Keyword: |
Fiber Optic To HDMI Converter |
Video Support: |
4K 30Hz, 1080P 60Hz |
Power Input: |
5VDC USB |
Fiber Port: |
Simplex LC Connector |
Cable: |
OM3 Multi-mode Fiber |
Transmission Distance: |
300M |
OEM Mini 4K 30HZ HDMI over Single Core Multimode Fiber Extender LC 300 Meters
HDMI Fiber Converter Advantages
►Uses Small, Reliable LC Optical Connector
►Double Power Supply (HDMI 5V&USB)
►Integrated USB Connector for Power
►DDC CEC HPD Signal Support
4K HDMI USB Extender Resolution
|
Chroma Subsampling |
4K Resolution |
1080P Resolution |
|
4:4:4 |
4K@30Hz |
1080P@60Hz |
|
4:2:2 |
4K@30Hz |
1080P@60Hz |
|
4:2:0 |
4K@60Hz |
1080P@60Hz |
Fiber Optic Extender Technical Indexes
|
Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
|
Video Support |
1920x1200 / 1080p@60Hz, up to 4K@30Hz (Y:U:V 4:4:4) |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Website Specifications |
Color space 444, 420, 400 |
|
Dynamic EDID |
Plug & Play, no need to learn |
|
Fiber Connector |
1 x LC Connector |
|
Transmission Distance |
Multi Mode, up to 984ft (300M) |
|
Operating Temperature |
0°C to + 50°C |
|
Storage Temperature |
-20°C to + 85°C |
|
Dimension (WxDxH) |
2.24 x 0.6 x 0.55 in (57x16x14mm) |
|
Weight |
0.1 kg / 0.22 lb |
|
Operation Voltage |
5VDC |
|
Power Supply |
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Fiber Optical Transmitter Receiver Overview

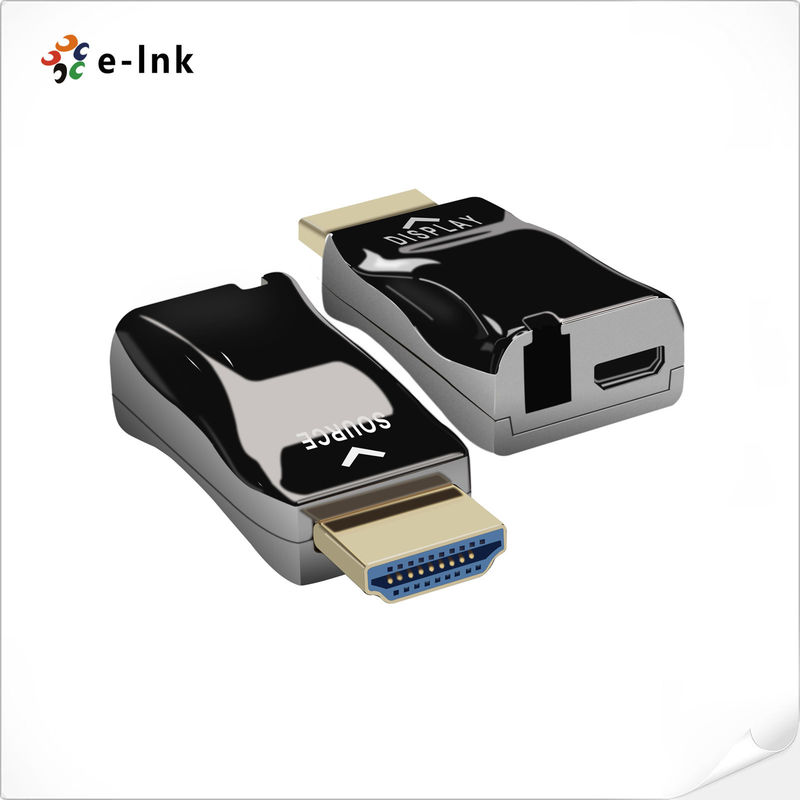

The LNK-107M is a mini 4K/30Hz HDMI over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
Micro 4K HDMI over Fiber Transceiver Ordering Information
|
Model |
Description |
|
LNK-107M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
