Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-B-DVI-1DA1GO
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: DVI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
DVI Fiber Optic Extender With RS232 |
Video Standards: |
DVI 1.0; HDCP 1.2 |
Audio Interface: |
3.5mm Earphone Seat |
Fiber Type: |
Single-mode Single Fiber |
RS232 Baud Rate: |
115200bps Max |
Power Adapter: |
DC 12V/1A |
Keyword: |
DVI Fiber Optic Extender With RS232 |
Video Standards: |
DVI 1.0; HDCP 1.2 |
Audio Interface: |
3.5mm Earphone Seat |
Fiber Type: |
Single-mode Single Fiber |
RS232 Baud Rate: |
115200bps Max |
Power Adapter: |
DC 12V/1A |

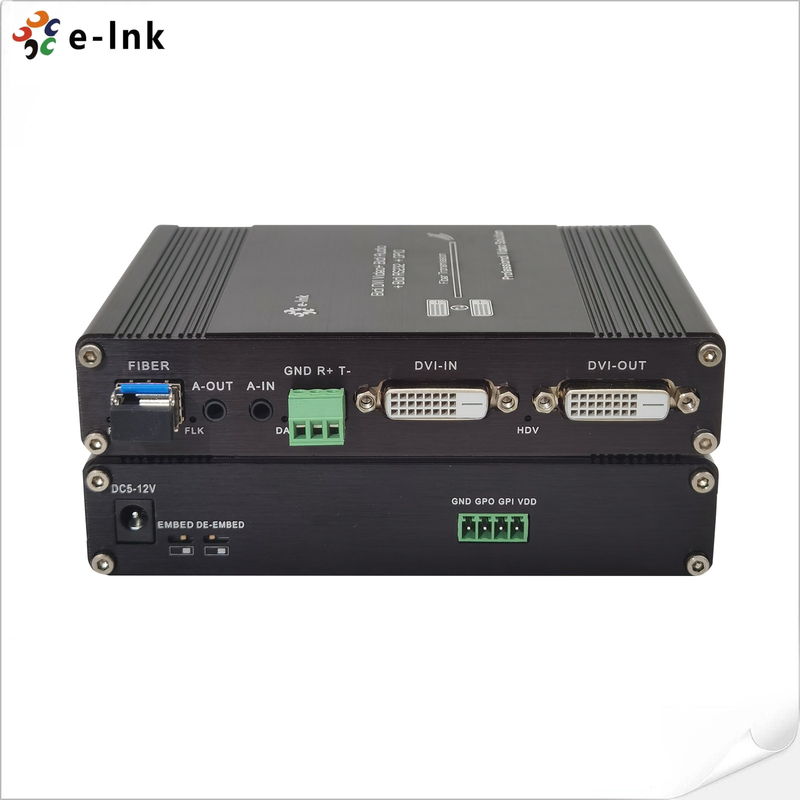

OEM 1080P BIDI DVI Video Fiber Extender With BIDI RS232 And BIDI Stereo Audio
DVI Fiber Extender Advantages
► Transmits Bi-directional DVI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal bi-directional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► High compatibility, can auto-match source and display device
Fiber Optic Converter With RS232 Technical Indexes
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Resolution | 1920*1200@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| GPIO | Interface | Industrial terminal |
| RS232 | Signal direction | Bi-directional |
| Baud rate | Self-adaptive, Max:115200bps | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Transmission distance | standard 10km | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 6W | |
| Dimension (LxWxH) | 154*115*38mm | |
| The warranty | 1-year warranty |
BIDI DVI Video Transceiver Overview
The LNK-B-DVI-1DA1GO Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
DVI over Transmitter Receiver Ordering Information
| Model | Description |
| LNK-B-DVI-1D1A1GO | 1Ch Bidi 1080P DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, SMF, 20KM |
