KVM Fiber Extender Aluminum Shell HDMI up to 60M with Loop Out

60M 1080P HDMI KVM Extender with Loop-out

· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;

· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;

· Support video resolution up to 1920*1080@60Hz, 3D signals;

· Support keyboard and mouse remoter control;

· Support local HDMI loop-out;

· Build-in EDID function, can match many kinds display device;

· Support POC unilateral power supply, need 1pc 12V power to TX

· Compliance with HDMI 1.3 and HDCP 1.3 standard;

· Ethernet cables with a standard IEEE - 568b connection, convenient installation;

· High compatibility, can auto-match source and display device;

· Built-in automatic adjustment system, make the image smooth, clear and stable;

1080P/60Hz HDMI KVM Extender With Loop-out - 197 ft (60m), including 1 Transmitter & 1 Receiver, used by pairs.

Overview

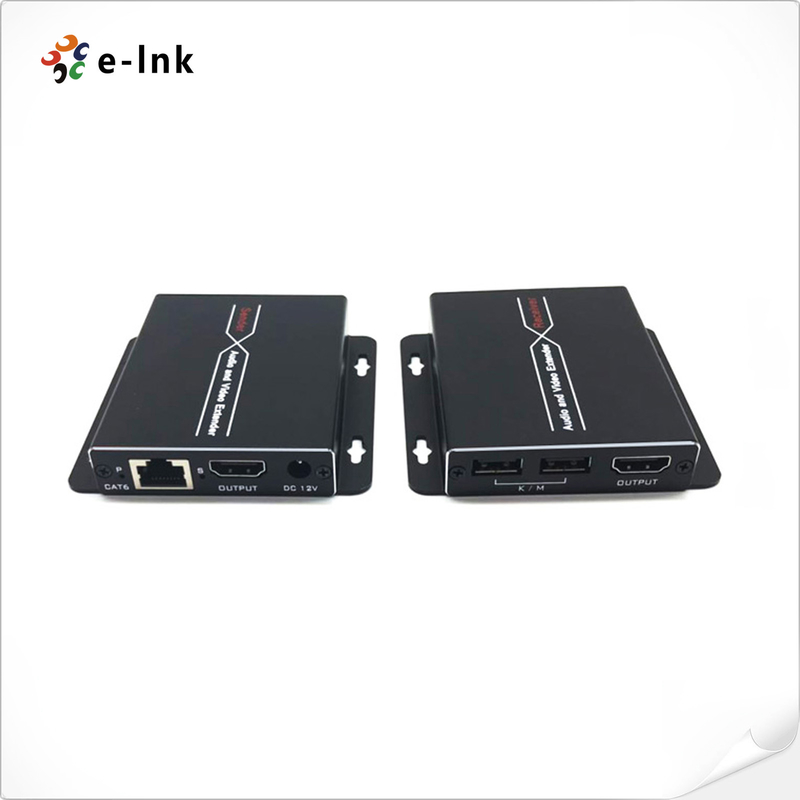

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the receiver (Connect power supply to the transmitter, receiver unit will power up through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc. The device has a long transmission distance, low use cost, convenient installation, and good compatibility, and it is a stable and efficient transmission method.
