Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-KVM-HDMI-1D1BA1GO
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Standards: |
HDMI V1.3 |
Maximum Pixel Clock: |
165MHz |
Maximum Data Rate: |
2.97Gbps |
Resolution: |
1920*1080@60Hz |
Power Adapter: |
DC 12V/1A |
Dimension: |
168*115*28mm |
Standards: |
HDMI V1.3 |
Maximum Pixel Clock: |
165MHz |
Maximum Data Rate: |
2.97Gbps |
Resolution: |
1920*1080@60Hz |
Power Adapter: |
DC 12V/1A |
Dimension: |
168*115*28mm |

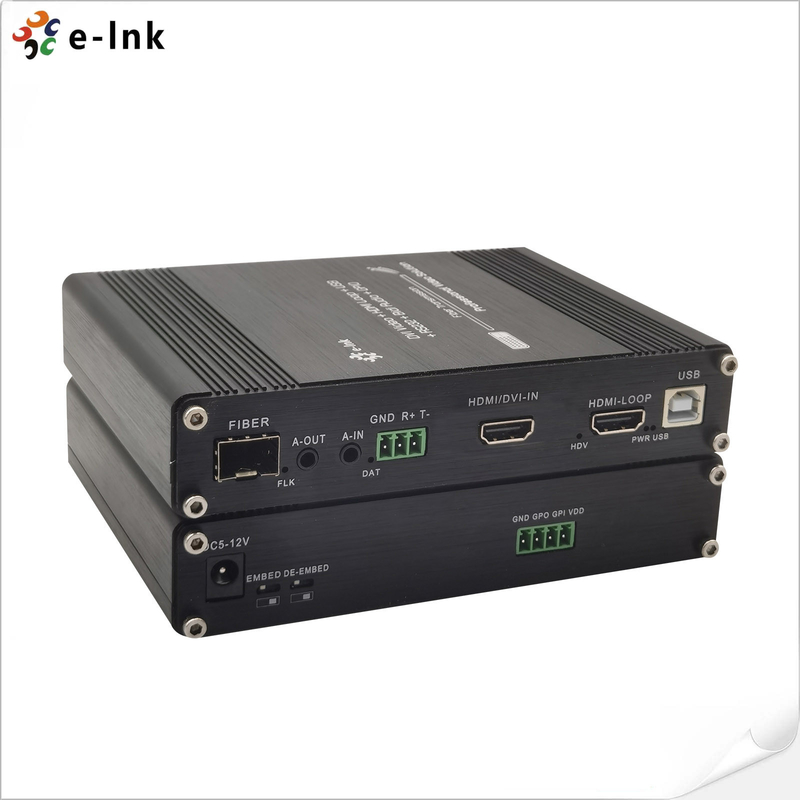

165MHz HDMI Fiber Extender 1Ch 1080P HDMI USB KVM RS232 GPIO
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
HDMI Fiber Extender Advantages
► Transmits HDMI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps;
► Support general-purpose input/output (GPIO) signal;
► Support HDMI loop out
► Auto EDID can be disabled via DIP switch
Specifications
| Parameter | Description | |
| Video | Standards | HDMI V1.3 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Connector | HDMI | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M | Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| Signal direction | Unidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance | standard 20km | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 168*115*28mm | |
| The warranty | 1-year warranty | |
Overview
The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Order Information
| Model | Description |
| LNK-KVM-HDMI-1D1BA1GO | 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
| LNK-HDMI-1D1BA | 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM |
