115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-HF100DA

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: Negotiation

Packaging Details: HDMI Fiber Extender Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

3Gbps HDMI Video Converter

,

115200M HDMI Video Converter

,

115200M Fiber Optic Extender

Keyword:
HDMI Fiber Optic Extender
Interface:
SFP Model LC Connector
Interface Bandwidth:
3Gbps
Baud Rate:
115200M
Wavelength:
850nm/1310nm/1550nm
Dimension:
92 X 57 X 23 (mm)
Keyword:
HDMI Fiber Optic Extender
Interface:
SFP Model LC Connector
Interface Bandwidth:
3Gbps
Baud Rate:
115200M
Wavelength:
850nm/1310nm/1550nm
Dimension:
92 X 57 X 23 (mm)
Description
115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232

115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232



HDMI Fiber Extender Bidirectional Stereo Audio RS232 HDMI Over Fiber Converter



HDMI Over Fiber Converter Advantages

► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard



Technical Indexes

Video

Maximum data rate

6.75Gbps

Compliant

Special support 1600*1200 @60HZ

Audio Interface 3.5MM external stereo audio
Transmitter 1Ch Input + 1Ch Ouptut
Receiver 1Ch Input + 1Ch Ouptut
RS232 Interface 3-Pin Terminal Block
Baud Rate ≤115200
Data Bits 8 bits
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode
Wavelength 850nm/1310nm/1550nm
Interface bandwidth 3Gbps
Transmission distance

Transmission@1920*1200@60Hz

Multi-mode fiber: <500M

Single-mode fiber: 20km

Overview

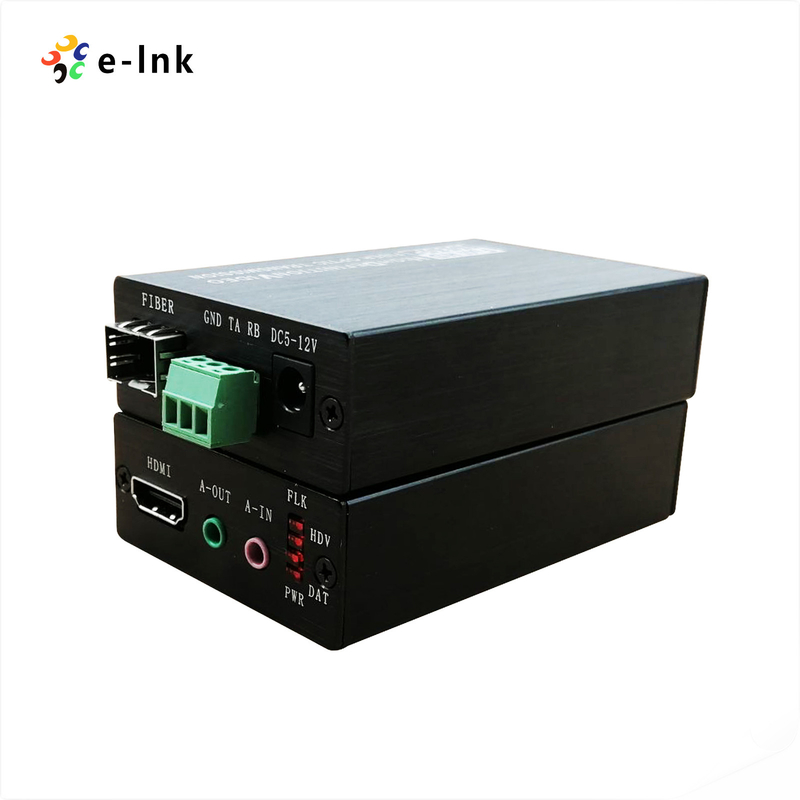

The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 and MHL2.1 dual mode, it is fully compatible with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232 0
 115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232 1

Ordering Information

Model

Description

LNK-HF100DA

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs

LNK-HF100DA-20

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
