Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-107M
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Optic To HDMI Converter |
Video Support: |
4K 30Hz, 1080P 60Hz |
Power Input: |
5VDC USB |
Fiber Port: |
1 X LC Connector |
Transmission Distance: |
OM3 Multi Mode, Up To 984ft (300M) |
Operating Temperature: |
-20°C To + 70°C |
Keyword: |
Fiber Optic To HDMI Converter |
Video Support: |
4K 30Hz, 1080P 60Hz |
Power Input: |
5VDC USB |
Fiber Port: |
1 X LC Connector |
Transmission Distance: |
OM3 Multi Mode, Up To 984ft (300M) |
Operating Temperature: |
-20°C To + 70°C |

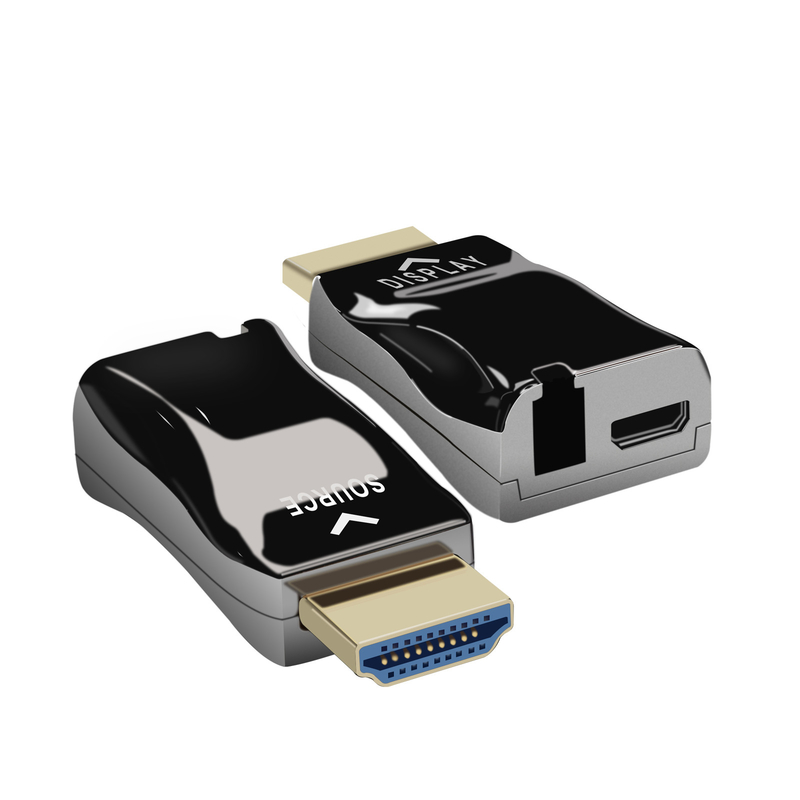

Mini 4K 30Hz HDMI Fiber Extender Single Core Multimode Repeater
Overview
The LNK-107M is a mini 4K/30Hz HDMI over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4 signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. LNK-107M-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single optical fibers. LNK-107M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender
HDMI Fiber Converter Advantages
l Supports HDMI Video up to 4K/30Hz
l No Settings or Adjustments Necessary
l Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
l Supports up to 300m Transmission Distance with OM3 multimode fiber
l Standard HDMI1.4 Connector
l Integrated USB Connector for Power
l Low power consumption, only the RX module (Display side) needs external power supply
l Hot-Pluggable
l The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
l Uses Small, Reliable LC Optical Connector
4K HDMI USB Extender Resolution
|
Chroma Subsampling |
4K Resolution |
1080P Resolution |
|
4:4:4 |
4K@30Hz |
1080P@60Hz |
|
4:2:2 |
4K@30Hz |
1080P@60Hz |
|
4:2:0 |
4K@60Hz |
1080P@60Hz |
Fiber Optic Extender Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Transmission Distance | OM3 Multi Mode, up to 984ft (300M) |
| Operating Temperature | -20°C to + 70°C |
| Storage Temperature | -40°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX+RX: 75mA |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note | The module does not support HDCP and EDID transparent transmission |
Micro 4K HDMI over Fiber Transceiver Ordering Information
| Model | Description |
| LNK-107M | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
