Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC205GHP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Ethernet Fiber Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial PoE Ethernet SFP Switch |
Input Power: |
48~57VDC |
Connector: |
4-Port 802.3at PoE Out |
Optical Port: |
2 Port SFP 1000Base-X Or 100Base-FX |
PoE Budget: |
Up To 360-watt |
Mounting Options: |
DIN-Rail |
Keywords: |
Industrial PoE Ethernet SFP Switch |
Input Power: |
48~57VDC |
Connector: |
4-Port 802.3at PoE Out |
Optical Port: |
2 Port SFP 1000Base-X Or 100Base-FX |
PoE Budget: |
Up To 360-watt |
Mounting Options: |
DIN-Rail |

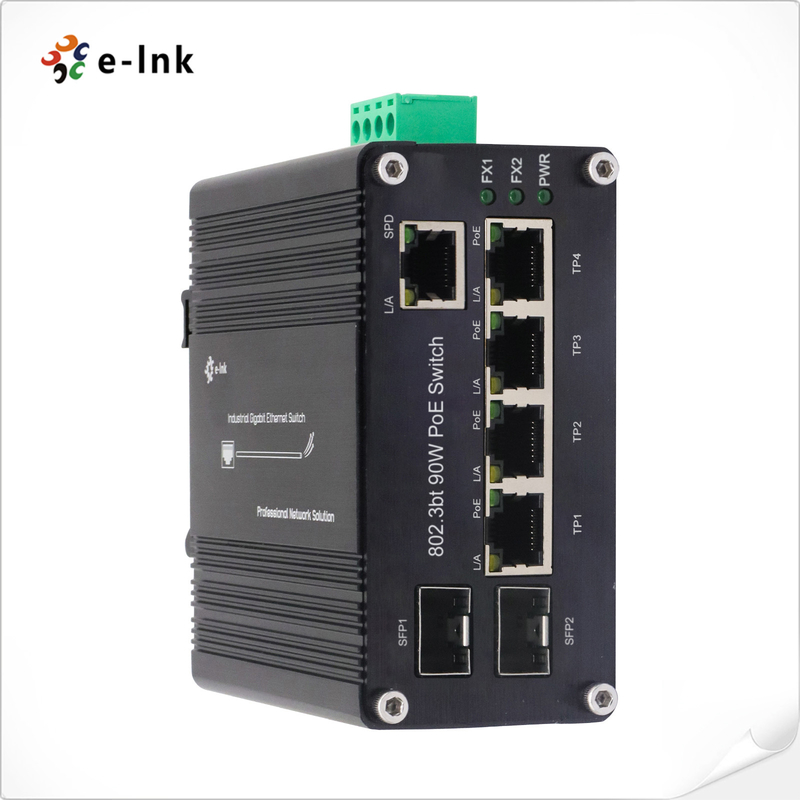

802.3bt 90W POE SFP Gigabit Ethernet Switch Industrial 4 Port
Industrial 4-Port 802.3bt 90W PoE + 1-Port RJ45 + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Industrial Din Rail PoE Switch Advantages
►5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
►2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
►Complies with IEEE 802.3bt PoE Standard
►Up to 4 ports of IEEE 802.3bt/at/af devices powered
►Supports PoE power up to 95 watts for each PoE port
►Compact fanless design avoids overheating
►48~57V DC redundant power with reverse polarity protection
5-port Gigabit Ethernet Fiber Switch Overview
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.
Unmanaged SFP Ethernet Switch Technical Indexes
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Network Cables |
Twisted-pair: |
|
Connector: |
5 x RJ45 (4-Port 802.3at PoE Out) |
|
Optical Port: |
2 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Power Pin Assignment: |
Pair 1 End-span: 1/2(-), 3/6(+) |
|
PoE Budget: |
Up to 360-watt PoE budget |
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
382W Max. (PoE in use) |
|
<5W (PoE not in use) |
90W 802.3bt PoE Fiber Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC205GHP-SFP |
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately |
