Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-PCM32
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD259/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Telephone Ports: |
32 Telephone Port RJ11 Port |
Fiber Ports: |
FC/UPC |
Port: |
Single-mode Single Fiber |
Input:: |
AC110-240V 50/60Hz |
Output: |
12V 1A |
Total power consumption: |
2.5w（Input:DC12V 1A) |
Telephone Ports: |
32 Telephone Port RJ11 Port |
Fiber Ports: |
FC/UPC |
Port: |
Single-mode Single Fiber |
Input:: |
AC110-240V 50/60Hz |
Output: |
12V 1A |
Total power consumption: |
2.5w（Input:DC12V 1A) |

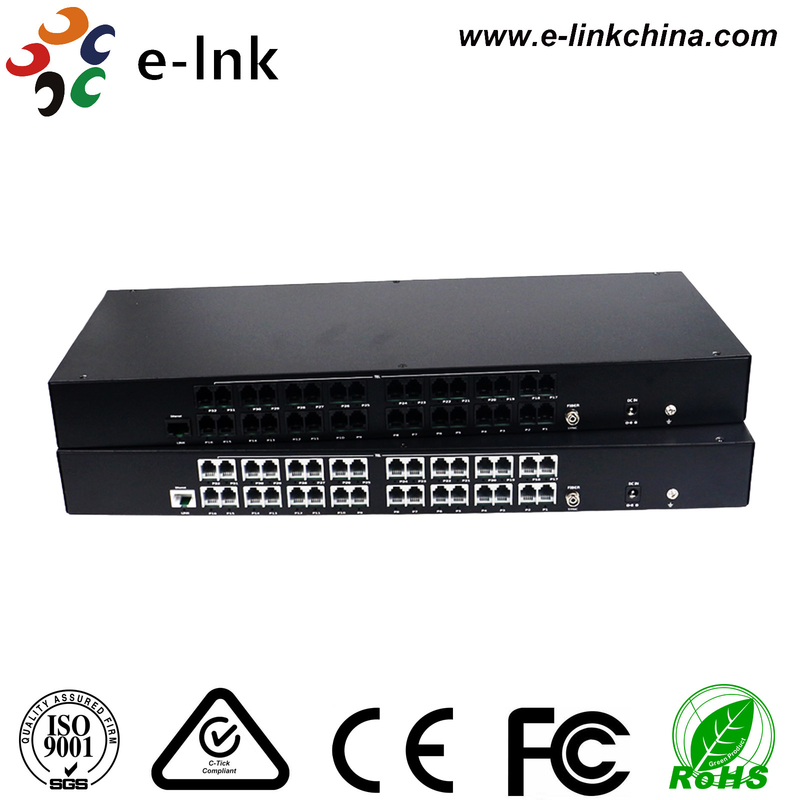

32Ch Fiber Optic Accessories POTS FXO FXS Telephone Over Fiber Mux
32Ch POTS(FXO/FXS)Telephone over Fiber Mux
Accessories Advantages:
standard RJ11 telephone interface
32 channel support voice access, Support Caller ID and Fax
Technical Indexes
| Product Name | 32 channel telephone over fiber converter |
| Product Model | LNK-PCM32 Series |
| Description | FXO/FXS Ordinary telephone |
| Telephone Ports | 32 telephone port RJ11 port |
| Switch Terminal |
Ordinary telephone or PBX, PBX (PBX), public telephone outside the PSTN |
| FXS | Ringing voltage: 75V, ringing frequency: 25HZ |
| FXO |
Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V |
| Ring detection frequency |
17HZ-60HZ, second-line input impedance: 600Ω(hook), return loss: 40 db |
| Broadband Voice | 8KHZ |
| Connection |
Point to point, telephone to telephone, telephone to switch |
| Code | PCM code |
| Fiber Ports | FC/UPC |
|
Ethernet Ports (optional) |
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX |
| Transmission distance | Single-mode single fiber 20KM |
| Environmental Specifications | Operating Temperature: -35°～ 75°C |
| Storage Temperature: -40°～ 45°C | |
| Operating Humidity: 0%～95%, non-condensing | |
| Total power consumption | 2.5w(Input:DC12V 1A) |
| Power supply |
External power supply, Input:AC110-240V 50/60Hz, Output:12V 1A |
Overview
E-link 32 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender. This Voice over Fiber converter
uses RJ-11C modular connectors for each copper pair connection.
Ordering Information
| Model | Description |
| LNK-PCM32 | Analog Telephone to F/O Converter: 32-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
| LNK-PCM32-E | Analog Telephone to F/O Converter: 32-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
