Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-PR16-2A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD729/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Number Of Slots: |
16 |
Structure: |
19” 4U Rack |
Dimension: |
485x280x176 (LxWxH) |
Ripple: |
≤20mv |
Number Of Slots: |
16 |
Structure: |
19” 4U Rack |
Dimension: |
485x280x176 (LxWxH) |
Ripple: |
≤20mv |

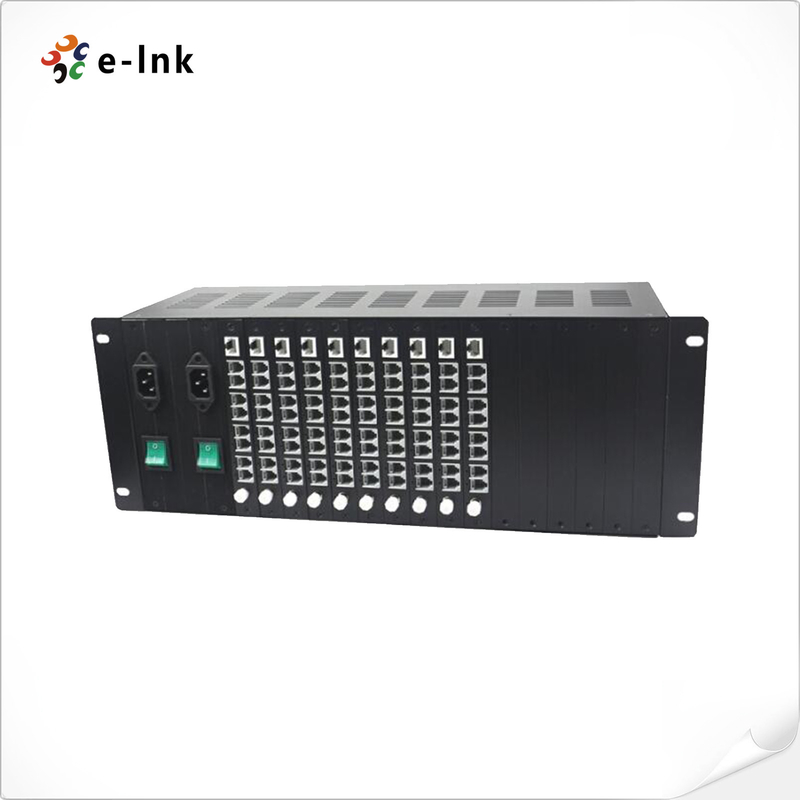

20mv Ripple Fiber Optic Accessories 4U Telephone Fiber Mux Rack
4U Telephone Fiber Mux Rack
Accessories Advantages:
► The configuration of active/standby power supply ensures uninterruptible operation of the system.
► Provide two power supplies, enabling the system can work under many operating environments;
► Supporting simultaneous operation of 4Ch or 8Ch Card-type Telephone Fiber Mux, which greatly improves system adaptability;
► Supports hot swapping
Technical Indexes
| Parameter | Specifications |
| Number of slots | 16 |
| Structure | 19” 4U rack |
| Card-type converter support | 4Ch or 8Ch Card-type Telephone Fiber Mux |
| Power input | AC Voltage: AC 100~260V; frequency: 50/60 Hz |
| Power output | DC5V 16A |
| MTBF | > 100,000 hours |
| Power configuration |
Single power supply; or Dual power supply for warm backup mode |
| Dimension (mm) | 485x280x176 (LxWxH) |
| Weight | 7.4KG |
| LED indication | POWER (power supply) |
| Construction | Metal |
| Operating temperature | -30°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative humidity | 5%~90% (non condensing) |
Overview
The LNK-PR-4U chassis can accommodate a combination of up to 16 pieces E-link card-type 4Ch or 8Ch telephone fiber mux modules. It makes your installation easier. The chassis employs a 110/220 VAC Switch Mode Power Supply(SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis. The high reliability and stability ensures that if one module shuts down, the operation of the other modules remains unimpaired. 0ne or two air-cooling fans are installed inside to further strengthen the superior performance of the system and eliminate the necessity for periodic maintenance. Status information can be read through the LED indicators on the installed modules. All of the modules installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing modules.
Ordering Information
| Model | Description |
| LNK-PR16-2A | 19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply |
