Model Number: LNK-HC100
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Input Port: |
(TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm |
Output Port: |
(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI |
HDMI Connector: |
Type A 19pin Female |
BNC Connector: |
BNC Jack |
3.5mm Connector: |
(TX And RX) IR Receiver/IR Blaster |
HDCP Compliance: |
Yes |
Input Port: |
(TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm |
Output Port: |
(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI |
HDMI Connector: |
Type A 19pin Female |
BNC Connector: |
BNC Jack |
3.5mm Connector: |
(TX And RX) IR Receiver/IR Blaster |
HDCP Compliance: |
Yes |
Female Type A 19pin HDMI Extender Over Ethernet RG6 Coaxial Cable
HDMI Extenders over RG6 Coaxial Cable
Advantages
► HDMI Extender Over Coaxial Cable With IR Remote Control
► Send HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away
► Compliant with HDMI 1.3, HDCP 1.1standards
► Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and 48KHz,LPCM Digital audio
► Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality
► Super IR control system, IR transport channel can be forward or backward.
Specifications
| Input | (TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm |
| Output | (TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI |
| HDMI connector | Type A 19 pin female |
| BNC connector | BNC Jack |
| 3.5mm connector | (TX and RX) IR Receiver/IR Blaster |
| HDCP Compliance | Yes |
| Video Bandwidth | Single-link 225Mhz [3Gbps] |
| Video Support | 720p/1080i/1080p @60 |
| Audio Support | PCM (up to 7.1 ch) 48KHz |
| Transmission Range | HD [1080p 36-bit color] – up to 100m [328ft] |
| Coaxial Cable | RG6 |
| Maximum Input Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
| Maximum Output Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
| HDMI Equalization | Auto |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| Power Supply | 1A@5VDC (2 adapters) (2.1mm plug) |
| Power consumption | 2 watts |
| ESD Protection (Human Body Model) |
±8kV (air-gap discharge), ±4kV (contact discharge) |
| PCB stack-up | 4 layouts |
| Housing | Metal enclosure |
| Operating Temperature | 32º~104º F (0º~40º C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 80 x 41 x 25 mm |
| Weight | 150g |
Overview

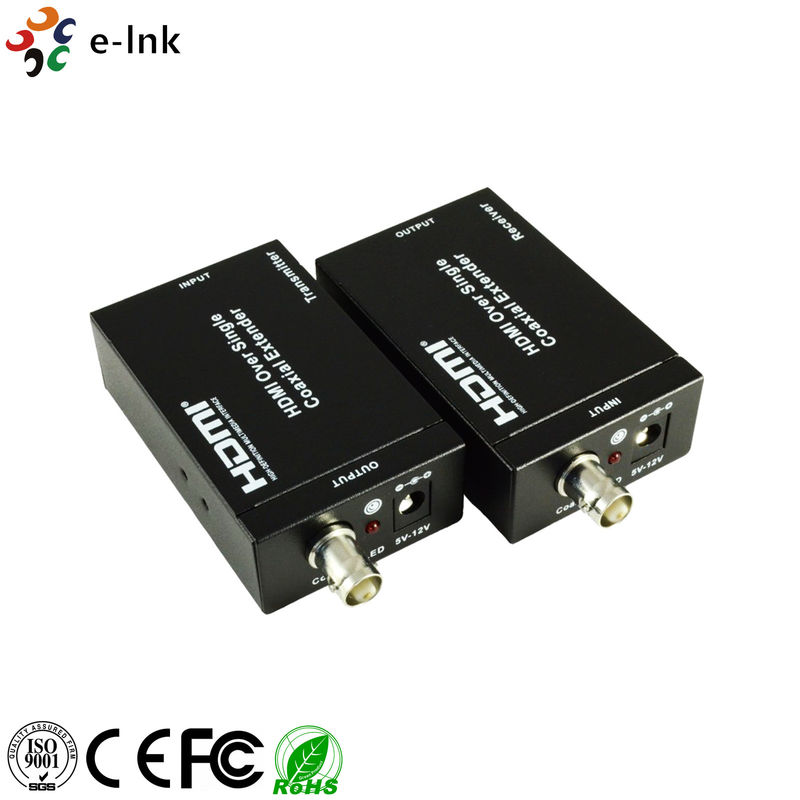

E-link HDMI Extender over Coaxial 100M BNC 75ohm RG-6U Coax Cable Balun is used for DVR, DVD, CCTV Camera and Home Theater. The Transmitter and Receiver sends HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away. The HDMI + IR Over Single Coax Extender supports HDMI 1.2 and HDMI 1.3 with features such as Deep Color and 1080p. By using standard and widely available 75ohm RG-6U cables, the HDMI Over Single Coax Extender makes extending your HDMI + IR signal easier than using heavy and expensive copper cable and more robust than using optical fiber cable.
The HDMI + IR Over Single Coax Extender system consists of a Transmitter and a Receiver. The HDMI source (set-top box, DVD player, or gaming console) connects to the Transmitter box with a HDMI cable. The Receiver box connects to the HDTV display in the same way up to 100M (328ft) away. One 75ohm RG-6U Coax cable links the Transmitter and Receiver. Power is applied to the Transmitter and Receiver with the included power adapters.
Ordering Information
| Model | Description |
| LNK-HC100 | HDMI Extenders over Single RG6 Coaxial Cable up to 100m/328ft Support IR Remote Control |
