Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-PJ202
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 2000PCS/Month
Standard: |
IEEE 802.3af, IEEE 802.3at |
Transfer Data: |
10/100M Or 10/100/1000Mbps |
Output Voltage: |
DC 48V; Two Groups 0.6A,Single Port≤30W |
Indicator: |
Power And Two Data+Power Indicator |
Standard: |
IEEE 802.3af, IEEE 802.3at |
Transfer Data: |
10/100M Or 10/100/1000Mbps |
Output Voltage: |
DC 48V; Two Groups 0.6A,Single Port≤30W |
Indicator: |
Power And Two Data+Power Indicator |

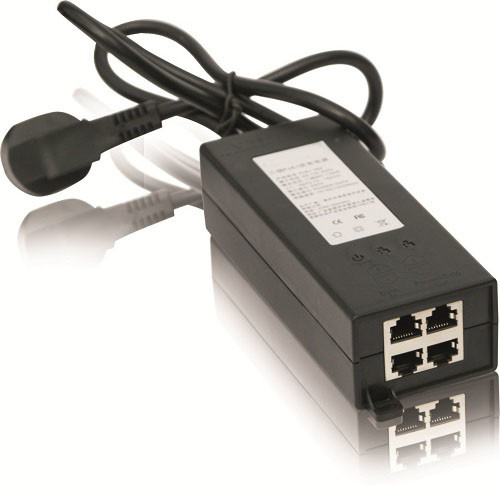

DC48V Two Groups 0.6A POE Adapter Injector Single Port 30W
2-Group POE Adapter Injector
2-Group POE Adapter Injector Advantages
► Transfer the data and power through the existing network, plug-and-play
► Conforms the IEEE 802.3at standard
► 100M or 1000M transmission rate to meet the high-bandwidth network applications
► Up to 30W of power on 2-pairs
► Auto-detect of PoE( IEEE 802.at/af) equipment;
► The input terminal of the AC voltage or DC power supply mode can be selected
► Use PD and PSE power supply equipment together,they can provide both data and
► Power for those not support PoE network equipment
► PD output is 5V/9V/12V etc. voltage (choose one)
Technical Indexes
| Standard | IEEE 802.3af, IEEE 802.3at |
| Transfer Data | 10/100M or 10/100/1000Mbps |
| transmission medium | 10 Base-T: Cat3, 4, 5 UTP, ≤100m 100/1000BASE-TX:Cat5 and Up UTP,≤100m |
| output voltage | DC 48V; Two Groups 0.6A,Single Port≤30W |
| Interface | RJ45 |
| power plug: according to requirement | |
| indicator | Power and Two Data+Power indicator |
| voltage range | AC 100～240V 50/60Hz |
| power dissipation | Standby 2.8W; FL 60W |
| Dimensions (W X D X H) |
5.79 x 2.28x 1.57 in.(147×58×40mm) (Mounting holes on the other gauge) |
| Weight | About 200g |
| Environment | Operating Temperature: -15℃～+45℃(5℉~113℉) |
| Operating Humidity: 20% ～85％ | |
| Storage Temperature -25°C—60°C(-13℉~140℉) | |
| Storage Humidity:20% ～90％ |
Overview
PoE (Power over Ethernet) is a technology where both data and electricity are transferred via Ethernet cable. A complete PoE system consists of power sourcing equipment (PSE) and powered device (PD). PoE uses two idle ones of four twisted pairs to transfer electricity to connect to Internet along with Ethernet, without additional cabling, providing an effective solution to power supply for deployment of IP network and WLAN wireless broadband equipment in rigorous network environment where power wiring is difficult. It is applicable for centralized power supply used for IP monitoring, wireless access and other applications. PoE+ provides a most
Ordering Information
| Model | Decription |
| LNK-PJ202 | 2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
| LNK-PJ202AT | 2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
| LNK-PJ302 | 2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
| LNK-PJ302AT | 2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
