Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-PSE9501G
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Operating Temperature:: |
-10°C To 50°C (14°F To 122°F) |
Product Model: |
LNK-PSE9501G |
Dimensions (W×D×H):: |
147 X 62 X 30mm |
Weight:: |
0.45Kg |
Operating Temperature:: |
-10°C To 50°C (14°F To 122°F) |
Product Model: |
LNK-PSE9501G |
Dimensions (W×D×H):: |
147 X 62 X 30mm |
Weight:: |
0.45Kg |

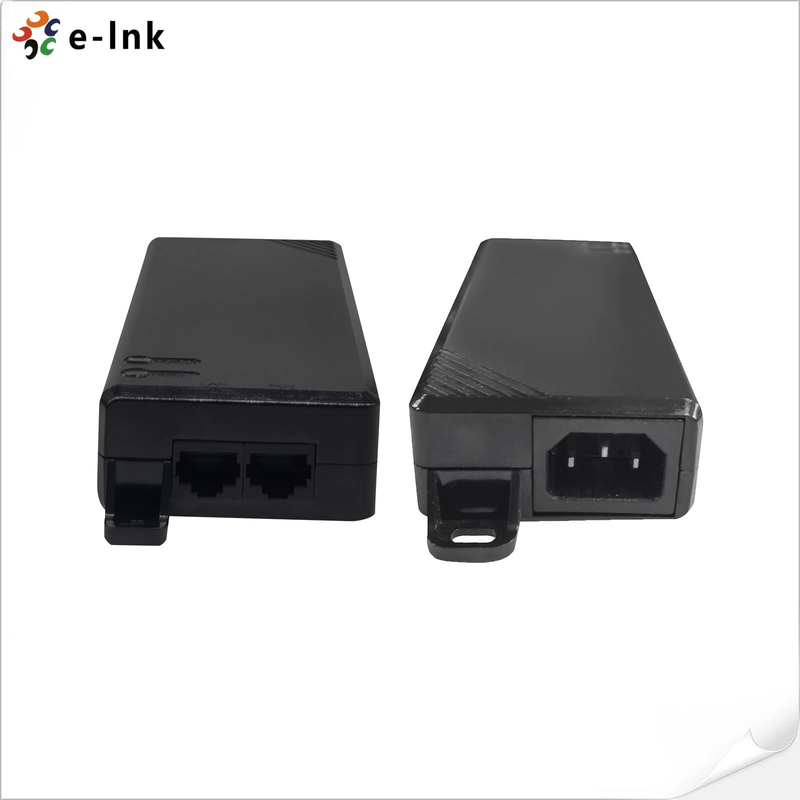

High Power 95W PoE Injector Adapter 10Mbps 100Mbps 1000Mbps
10/100/1000Mbps 95W High Power POE Injector
10/100/1000Mbps 95W High Power POE Injector Advantages
► Up to 95W of PoE Power
► Compliant with IEEE802.3af/at/bt Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP, IP phone, web camera and other functions
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: |
High Power PoE (95W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A max. |
| Output Voltage: | DC 48-57V, 2A |
| Power Consumption: | 95 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| Port: | RJ45 |
| Power Pin Assignment | Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
| PoE Power Output | DC 48V-57V/95-watt PoE via 2-pairs |
| LED Indicators | |
| Power: | Power Status |
| Port: | PoE Status |
| Dimensions (W×D×H): | 147 x 62 x 30mm |
| Weight: | 0.45Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop/Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Overview
LNK-PSE9501G 95W – 56V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE 802.3bt, 802.3at and 802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 95W based on the IEEE 802.3bt standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 95W of power. The solutions support IEEE 802.3bt powered devices and are also backward compatible and safe to use with any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Ordering Information
| Model | Description |
| LNK-PSE9501G | 95-watt High Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
