Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-DT400
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Model No.: |
LNK-DT400 |
Material: |
Metal |
Color: |
Black |
Interface: |
HDMI |
Model No.: |
LNK-DT400 |
Material: |
Metal |
Color: |
Black |
Interface: |
HDMI |

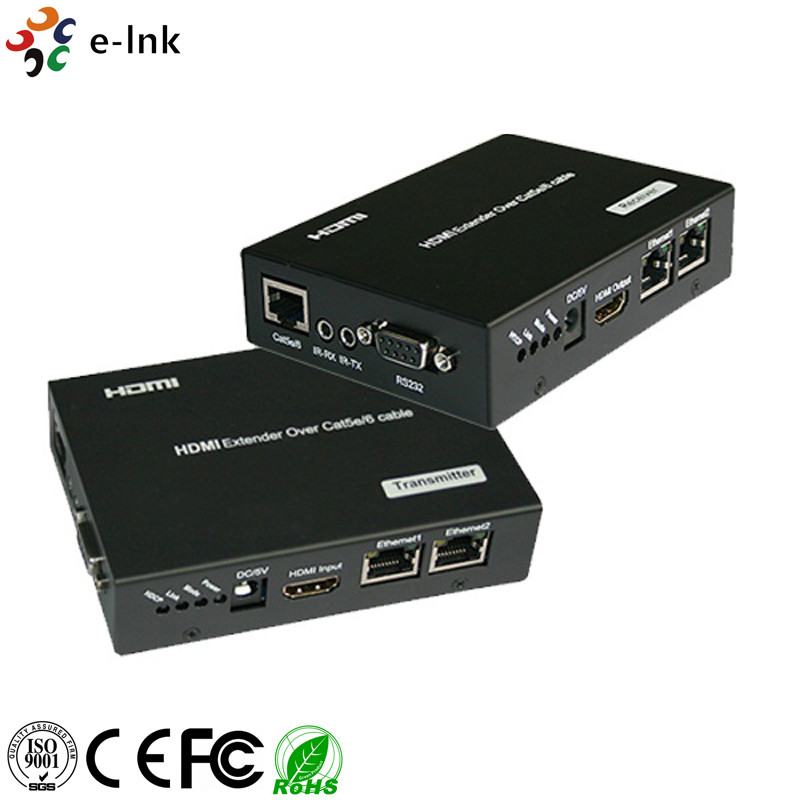

Bi Directional IR Control 4KX2K HDMI Video Extender Over CAT5 CAT6 Kit
4K x 2K HDMI Video Extender over CAT5 / 6 Kit
4K x 2K HDMI Video Extender over CAT5 / 6 Kit Advantages
► Extends HDMI with multi-channel digital audio, IR and RS232 up to 330 feet (100 meters).
► Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30 Hz) and 1080P Full HD.
► 5PlayTM convergence: uncompressed high definition Video and Audio, LAN serving, RS-232/IR controls
► Supports LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through
► Supports 48bit Deep Color
► Supports Bi-directional IR control.
► CEC pass-through
► Supports HDCP
Technical Indexes
| Material | Metal |
| Color | Black |
| Interface | HDMI |
| Technology | HDBaseT |
| Application | Extend HDMI Signal Up to 330ft/100mOver Cat5e/6 Cable |
| Operating Temperature Range | -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
| Oprating Humidity Range | 5 to 90%RH ( No Condensation ) |
| Output Video Bandwidth | 300MHz / 10.2Gbps |
| Ethernet Speed | 100Mbps |
| Transmitter Ports |
1*HDMI ( Female ) - Video Input; 1*DB9 ( Female ); 1* LINK Connector RJ45; 1* Ethernet Port RJ45; 1*DC Jack ( DC 5V ) |
| Receiver Ports |
1*HDMI ( Female ) - Video Output; 1*DB9 ( Male ); 1* LINK Connector RJ45; 1* Ethernet Port RJ45; 1* DC Jack ( DC 5V ) |
| IR Wavelength & Frequency | Wavelength : 940nm; Frequency : 38KHz |
| Up to 4K*2K ( 3840*2160 @24Hz ) | |
| Resolution Outputs |
Transmitter: 126.1*95*25.5mm; Receiver: 126.1*95*25.5mm |
| Dimension ( L*W*H ) | Transmitter: 5W ( Max. ) & Receiver : 3W ( Max. ) |
| Transmission Distance | 330ft/100m Over Cat5e/6 Cable |
| Net Weight | Transmitter: 340g; Receiver: 335g |
Overview
E-link 4Kx2K HDMI Extender Over Ethernet With RS232, incorporates HDBaseT Technology, extends HDMI signal 1080p up to 330ft/100m over single cat5e/6 cable. This HDBaseT HDMI Extender supports Ultra HD 4K and full HD 1080p, with Ethernet, RS232 and IR Control.
Order Information
| Model | Description |
| LNK-DT400 | 4K x 2K HDMI Video Extender over CAT5/6 Kit |
