Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-HU03
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Model: |
LNK-HU03 |
Working Temperature: |
0-50 Deg C |
Storage Temperature: |
-20-70 Deg C |
Storage Humidity: |
5%-90% |
Model: |
LNK-HU03 |
Working Temperature: |
0-50 Deg C |
Storage Temperature: |
-20-70 Deg C |
Storage Humidity: |
5%-90% |
ROHS FCC CE HDMI Fiber Extender To USB3.0 Video Capture Dongle

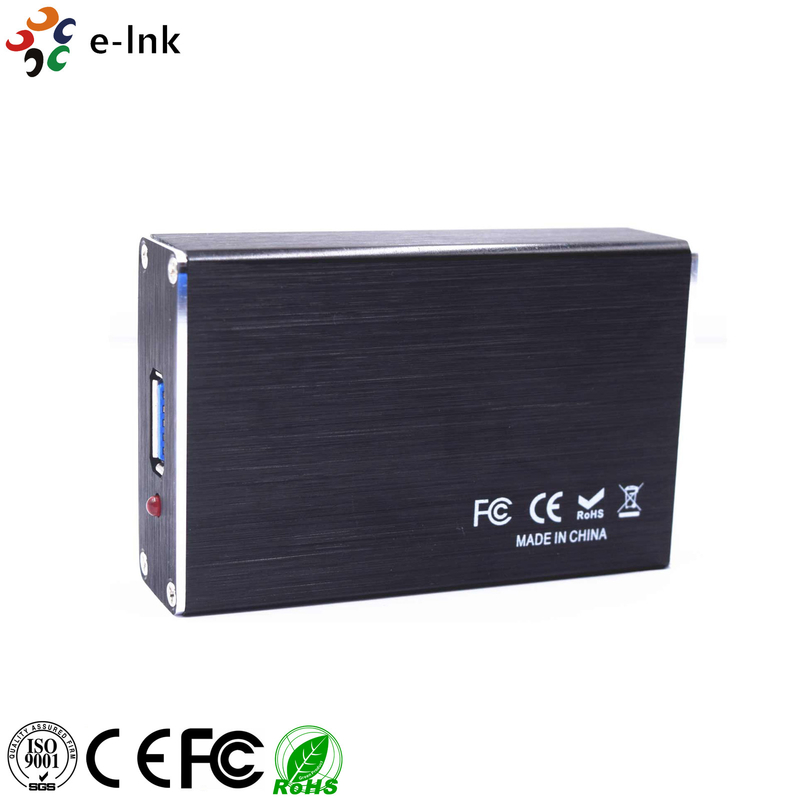

HDMI to USB3.0 Video Capture Dongle
Advantages
· Full digital, Uncompressed HD optical fiber transmission
· It doesn't need to install a driver, and it is truly PnP.
· It is compatible with Windows, Linux, OS X operating systems
· USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
· The process of video and audio is done by the dongle and will not occupy the CPU.
· It can capture one single channel HD HDMI video signals.
· It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
· The input and output video signal can reach 1080p/60 Hz.
· It is compatible with UVC video capture and YUV 422 video output.
Technical Indexes
Overview
The HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 1080p60 input and output signal; compatible with Windows, Linux, Mac OS X and USB 3.0 interface, Compatible with many USB 3.0 chipset (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface; The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.
Ordering Information
|
Item |
Description |
|
LNK-HU03 |
HDMI to USB3.0 Video Capture Dongle with 1PCS USB3.0 Cable,1PCS HDMI cable |
