Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Video Interface: |
BNC/75Ω |
Video Bits Rate: |
Max 3.2Gb/s |
Differential Gain (10%～90% APL): |
<1% |
Resolution: |
Max 1080P@60Hz |
Video Interface: |
BNC/75Ω |
Video Bits Rate: |
Max 3.2Gb/s |
Differential Gain (10%～90% APL): |
<1% |
Resolution: |
Max 1080P@60Hz |

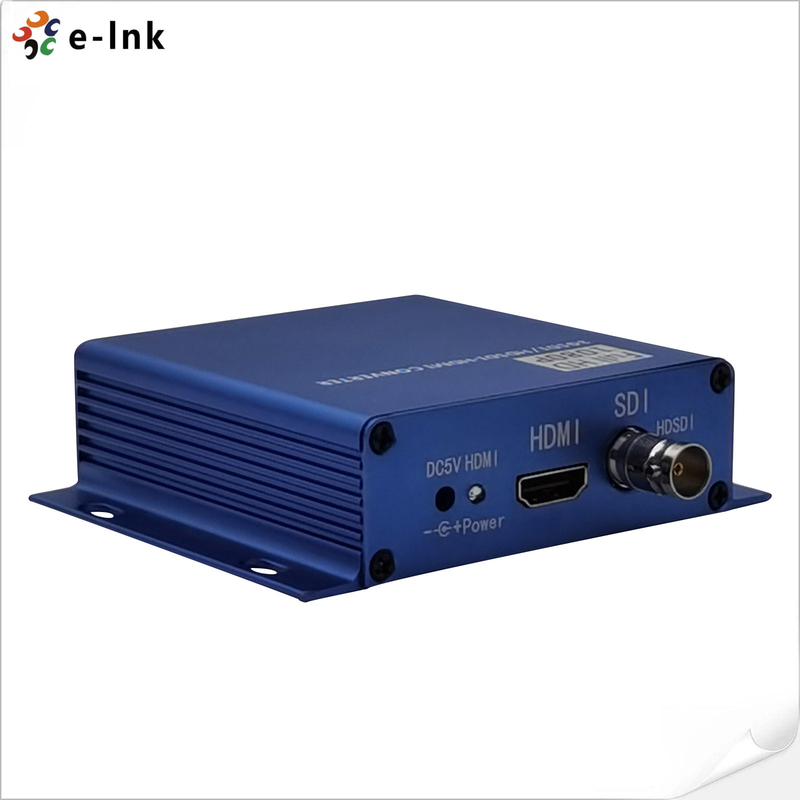

HD 1080P 60Hz 3G SDI To HDMI Converter With 1ch Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
Advantages
► Support SD-SDI, HD-SDI, 3G-SDI input;
► Support 1ch SDI loop-out;
► Directly compatible with HD-SDI camera systems
► Use dedicated clock recovery circuit for repeater use;
► Adaptive SDI input resolution
► Audio and image sync output to HDMI interface;
► Built-in ESD protection circuit to prevent static damage;
► LED Status Indication to monitor the working conditions;
► Easy to install, plug and play;
Technical Indexes
| Video Input | |
| Video interface | BNC/75Ω |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Resolution | Max 1080P@60Hz |
| SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Video Output | HDMI |
| Electrical | |
| Power Input | DC 5V |
| Power consumption | <3W |
| LED Indicator | SDI |
| Power/HDMI | |
| Mechanical | |
| Dimensions (LxWxH) | 82 x 87 x 28 mm |
| Weight | 160g |
| Casing | Aluminum Case |
| Mounting Options | Desktop/Wall mount |
| Environmental | |
| Working Temperature | -10℃～+60℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
The SDI-HDMI Converter is a device designed to convert a single HD digital interface (3G-SDI) signal into an HDMI signal. At the same time, the audio signal of the SDI is separated and embedded into the HDMI signal to realize the audio and image synchronous transmission It’s widely used in security system, video conference, broadcasting and live Events etc.
