Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-WHD300
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Storage Temperature: |
-5℃ ~ +70℃ |
Operation Humidity: |
5% ~ 90% |
Dimension: |
97*97*20mm |
Warranty: |
1 Year Free Warranty |
Storage Temperature: |
-5℃ ~ +70℃ |
Operation Humidity: |
5% ~ 90% |
Dimension: |
97*97*20mm |
Warranty: |
1 Year Free Warranty |

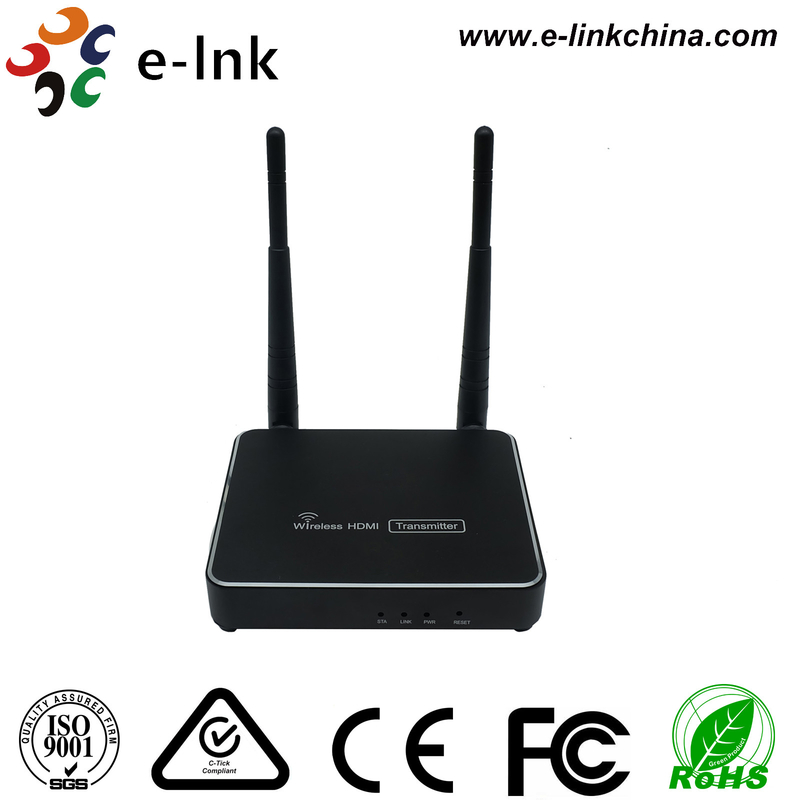

Video Audio HDMI Fiber Extender H.264 Wireless Extender Up To 300M
HDMI H.264 Wireless Extender up to 100M
Advantages
· HDMI video and audio transmission via wireless WIFI, up to 300 meters；
· HD video signal resolution up to 1920 * 1080 @ 60 Hz；
· HDMI 1.3 compatible
· Special format is used to compress and decompress video, effectively improve the transfer efficiency, to ensure that the playback fluency；
· In accordance with standard 1.2 HDCP, high-bandwidth digital content protection technology；
· Support external remote infrared extension, easy to operate the remote device；
· Able to automatically identify and configure a variety of display mode；
· Built-in automatic balance system, the picture is fluent, clear and stable；
· The built-in ESD electrostatic protection circuit, comprehensive security protection system；
· Simple and convenient installation, plug and play, do not need to set up；
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Compressed format | H.264 | |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | Max: 1920X1080p@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Recommend HDMI maximum input/output range | Less than 5 meters, when 1920 x1080p @ 60 Hz | |
| IR | Interface | 3.5mm Stereo audio socket |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 20-60kHz | |
| WIFI | Radio Frequency power | 13dbm |
| Wireless standards | 802.11ac | |
| signal direction | Unidirectional | |
| Radio frequency | 5.8GHz | |
| Transmission distance | 300M | |
| Other | Power | Adapter:DC 5V |
| Power dissipation | MAX 6W | |
| Temperature | Operating:-5℃ ~ +70℃ | |
| Humidity | Operating:5% ~ 90% | |
| Size | 97*97*20mm | |
| Warranty | 1 year warranty | |
Overview
This LNK-WHD300 HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, with infrared extensions to make remote control more convenient.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
