Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-H4K101
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Hdmi Extender |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
104*89*28mm |
Transmission Distance: |
OM3 Multi-mode Fiber: Maximum 300m.Single-mode Fiber: Standard 2km；maximum 60km |
Keyword: |
Fiber Hdmi Extender |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
104*89*28mm |
Transmission Distance: |
OM3 Multi-mode Fiber: Maximum 300m.Single-mode Fiber: Standard 2km；maximum 60km |
EDID Memory 4K HDMI Fiber Extender Built In ESD Protection System

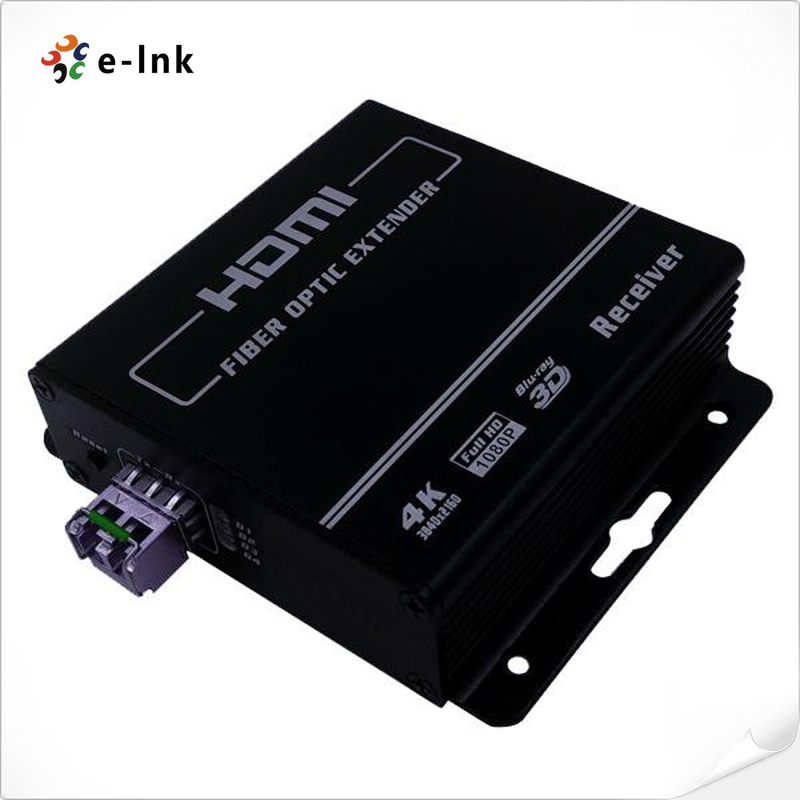

4K HDMI Fiber Optic Extender
Overview
The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
HDMI To Fiber Converter Advantages
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► Support video resolution up to 3840*2160@30Hz, 3D signal;
► Compliance with HMDI 1.4; High compatibility;
► Transmitter includes EDID memory to cache the EDID from any display;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock | 340MHz | |
| Maximum data rate | 10.2Gbps | |
| Resolution range | Up to 3840*2160@30Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Multi-mode / single-mode (optional) | |
| Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
| Interface bandwidth | 10Gbps | |
| Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | Max 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 104*89*28mm | |
| Port name | Description |
| HDMI IN | HDMI signal input |
|
RESET (EDID BOTTON) |
An EDID memory built into the Tx module can learn and store the display EDID info. |
| POWER | Power adapter socket |
| SFP | SFP model --- LC connector |
| LED indicator | Description |
| D1 | System power indicator |
| D2 | When press EDID BOTTON, The led will flash 3 seconds |
| D3 |
Optical fiber signal connection indicator ON:LOS OFF:OK |
| D4 | BLINK,Source plug in |
Ordering Information
| Item | Description |
| LNK-H4K101 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module |
