Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-H4K100
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Hdmi Extender |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
104*89*28mm |
Keyword: |
Fiber Hdmi Extender |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
104*89*28mm |

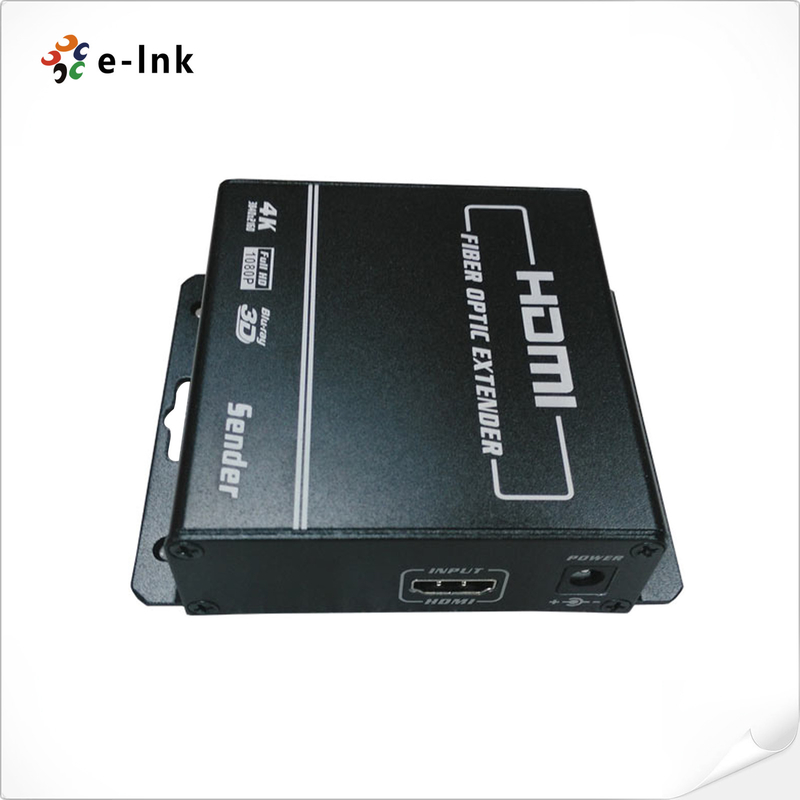

2km 60km 4K HDMI Fiber Optic Extender 30Hz 3D Video Signal
4K HDMI Fiber Optic Extender
HDMI To Fiber Converter Advantages
l Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
l Support video resolution up to 3840*2160@30Hz, 3D signal;
l Compliance with HMDI 1.4 and HDCP 1.2 standard;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock | 340MHz | |
| Maximum data rate | 10.2Gbps | |
| Resolution range | Up to 3840*2160@30Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Multi-mode / single-mode (optional) | |
| Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
| Interface bandwidth | 10Gbps | |
| Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | Max 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 104*89*28mm | |
Overview
The LNK-H4K100 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
| Item | Description |
| LNK-H4K100 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port (Excl. SFP), including 1 transmitter & 1 receiver, used by pairs |
