High isolation PDL PoE Power Splitter Mini PLC Splitter Module

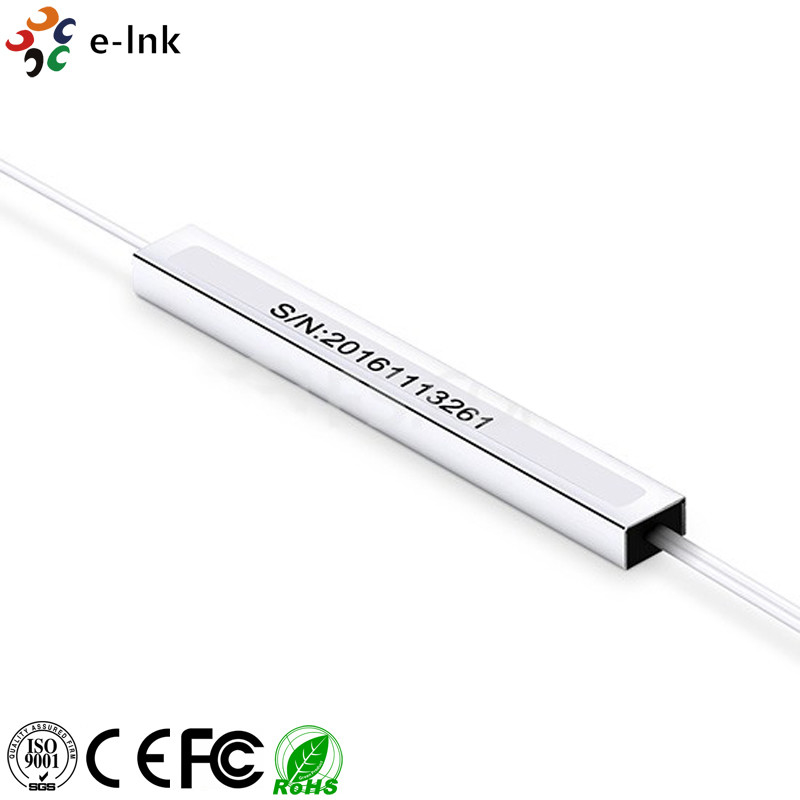

Mini Module PLC Splitter
Advantages
1. Low Insertion Loss (IL)
2. High isolation
3. Low Polarization Dependent Loss (PDL)
4. Compact design
5. Wide operating wavelength range
6. Good channel-to-channel uniformity
7. High reliability and high stability
8. Telcordia GR-1209-CORE-2001 compliant
9. Telcordia GR-1221-CORE-1999 compliant
10. YD/T-1272Q compliant
11. Q/CT-2295 compliant
12. RoHS-6 compliant (lead free)
Technical Indexes
| Parameters | 1×N Mini Module PLC Splitters | |||||
| Operating Wavelength (nm) | 1260～1650 | |||||
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Max Insertion Loss (dB) (P/S Grade) | 4.1/4.3 | 7.4/7.6 | 10.5/10.8 | 13.8/14.0 | 16.8/17.2 | 20.8/21.3 |
| Max Loss Uniformity (dB) | 0.6 | 0.7 | 0.8 | 1.2 | 1.5 | 2.0 |
| Max PDL (dB) | 0.2 | 0.25 | 0.35 | |||
| Min Return Loss (dB) | 55 | |||||
| Min Directivity (dB) | 55 | |||||
| Max Wavelength Dependent Loss (dB) | 0.5 | 0.8 | 1.0 | |||
| Max Temperature Stability (dB) | 0.5 | |||||
| Operating Temperature (℃) | -5～75 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Device Dimension L×W×H (mm) | 60×7×4 | 60x12x4 | 80x20x6 | 100x40x6 | ||
| Parameters | 2×N Mini Module PLC Splitters | ||||
| Operating Wavelength (nm) | 1260～1650 | ||||
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Max Insertion Loss (dB) | 4.5 | 7.9 | 11.3 | 14.7 | 17.8 |
| Max Loss Uniformity (dB) | 0.9 | 1.0 | 1.2 | 1.5 | 1.8 |
| Max PDL (dB) | 0.3 | 0.35 | |||
| Min Return Loss (dB) | 55 | ||||
| Min Directivity (dB) | 55 | ||||
| Max Wavelength Dependent Loss (dB) | 0.5 | 0.8 | |||
| Max Temperature Stability (dB) | 0.5 | ||||
| Operating Temperature (℃) | -5～75 | ||||
| Storage Temperature (℃) | -40～85 | ||||
| Device Dimension L×W×H (mm) | 60×7×4 | 60x12x4 | 100x20x6 | ||
Overview
The E-link mini module PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with mini module package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized mini module PLC splitters to meet different requirements on port configuration, cable type, fiber length, input connector, and output connector.
