Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-MHA4K-80
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: HDMI Fiber Transmitter Receiver Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pairs/month
Product Name: |
4K 30Hz HDMI Over Fiber Extender |
Transmission Distance: |
Up To 80KM (Over Single-mode Fiber) |
HDMI Version: |
HDMI 1.4 |
Video Resolution: |
Up To 4K*2K 30Hz |
Cable Type: |
Single Mode Single Fiber LC |
Power Supply: |
5~12V DC |
Audio Interface: |
3.5MM External Stereo Audio |
Audio Format: |
LPCM, Dolby TrueHD, DTS-HD Master Audio |
Dimensions (LxWxH): |
2.87 X 1.73 X 0.69in (73x44x17mm) |
Weight: |
60g / 0.13 Lb |
Product Name: |
4K 30Hz HDMI Over Fiber Extender |
Transmission Distance: |
Up To 80KM (Over Single-mode Fiber) |
HDMI Version: |
HDMI 1.4 |
Video Resolution: |
Up To 4K*2K 30Hz |
Cable Type: |
Single Mode Single Fiber LC |
Power Supply: |
5~12V DC |
Audio Interface: |
3.5MM External Stereo Audio |
Audio Format: |
LPCM, Dolby TrueHD, DTS-HD Master Audio |
Dimensions (LxWxH): |
2.87 X 1.73 X 0.69in (73x44x17mm) |
Weight: |
60g / 0.13 Lb |

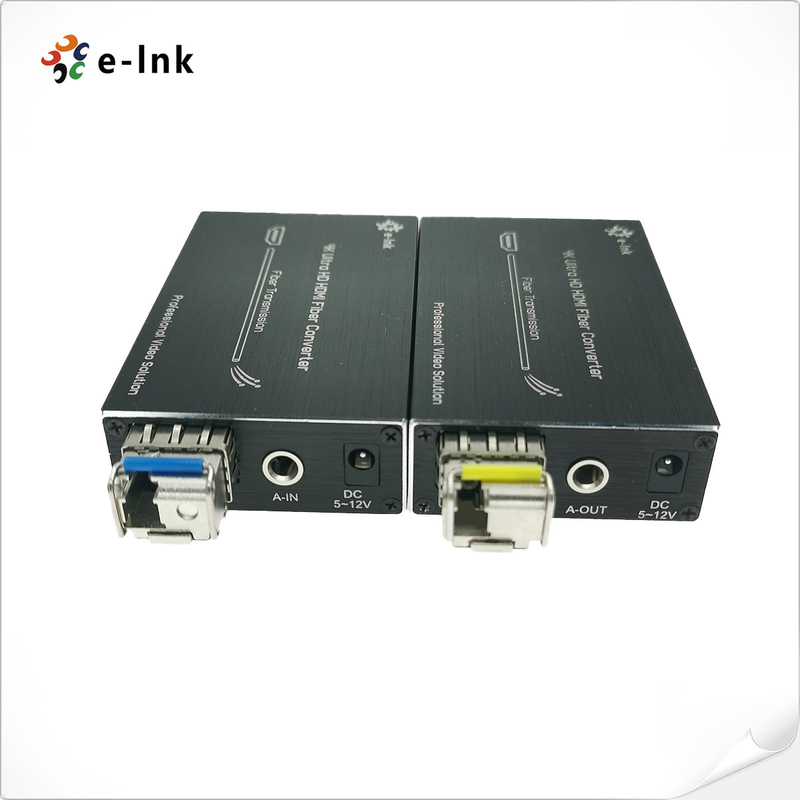

4K 30HZ HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver
HDMI Video Fiber Converter Advantage
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Supports All Modes up to 4K*2K@30Hz Resolution
► Support external stereo audio
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► 850nm VCSEL and PIN Photo detector
4K HDMI Video Over Fiber Extender Overview
The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
HDMI Fiber Transmitter Receiver with External Audio Technical Indexes
|
Input Signals |
HDMI |
|
Connector |
Female HDMI type A |
|
Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
|
Video Support |
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Color space, 420, 400 |
|
Dynamic EDID |
Plug & Play, no need to learn |
|
Audio Interface |
3.5MM external stereo audio |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.3Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 to + 60°C |
|
Storage Temperature |
-20 to + 85°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
2.87 x 1.73 x 0.69in (73x44x17mm) |
|
Weight |
60g / 0.13 lb |
|
Power Supply |
5~12V DC |
|
Power dissipation |
<5W |
|
Safety Approvals |
CE, FCC, Rohs |
HDMI Fiber Extender with Audio Ordering Information
|
Model |
Description |
|
LNK-MHA4K-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
|
LNK-MHA4K-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
|
LNK-MHA4K-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
|
LNK-MHA4K-80 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
|
LNK-MHA4K-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
