Product Details
Place of Origin: china
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-HDE-60KVM
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiated
Packaging Details: standard export package
Delivery Time: 5-8work
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000pair/month
Video Standards: |
HDMI 1.3, HDCP 1.3 |
Video Maximum Pixel Clock: |
165MHz |
Video Max Data Rate: |
6.75Gbps |
Video Connector: |
HDMI-A |
Power Supply: |
DC 12V |
Power Dissipation: |
Max: 4W |
Video Standards: |
HDMI 1.3, HDCP 1.3 |
Video Maximum Pixel Clock: |
165MHz |
Video Max Data Rate: |
6.75Gbps |
Video Connector: |
HDMI-A |
Power Supply: |
DC 12V |
Power Dissipation: |
Max: 4W |
Compact Size 165MHz POC HDMI KVM Extender With Remoter Control
60M 1080P HDMI KVM Extender with Loop-out
HDMI KVM Extender Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;
· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
· Support video resolution up to 1920*1080@60Hz, 3D signals;
· Support keyboard and mouse remoter control;
· Support local HDMI loop-out;
· Build-in EDID function, can match many kinds display device;
· Support POC unilateral power supply, need 1pc 12V power to TX
· Compliance with HDMI 1.3 and HDCP 1.3 standard;
· Ethernet cables with a standard IEEE - 568b connection, convenient installation;
· High compatibility, can auto-match source and display device;
· Built-in automatic adjustment system, make the image smooth, clear and stable;

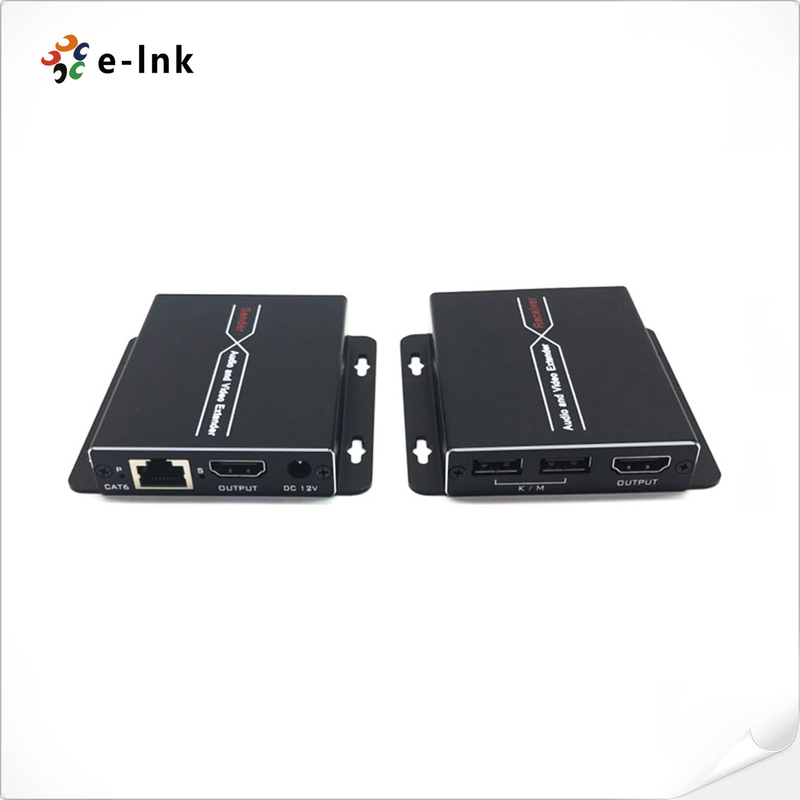

HDMI KVM Extender Picture
HDMI KVM Extender Application
HDMI KVM Extender Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.3, HDCP 1.3 |
| Maximum Pixel Clock | 165MHz | |
| Max Data Rate | 6.75Gbps | |
| Resolution | Max: 1920X1080@60Hz(backward-compatible) | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| USB | Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
| USB Signal | HID Signal | |
| UTP | Interface | RJ45 |
| Transmission Distance | CAT6 Max: 60m | |
| Other | Power Supply | DC 12V |
| Power Dissipation | Max: 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 82*85*17mm | |
| The warranty | 1 Year Free Warranty | |
HDMI KVM Extender Ordering Information
| Part No | Description of product |
| LNK-HDE-60KVM | 60M 1080P HDMI KVM Extender With Loop-out |
