Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-FSB-D-12SC
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Splice Box Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
Din-rail Mount Fiber Patch Panel |
Adapters: |
12 Ports Duplex SC |
Installation: |
Din-rail Mounting |
Material: |
Aluminum |
Color: |
Gray |
Operating Temperature: |
-40°C To 80°C |
Product Name: |
Din-rail Mount Fiber Patch Panel |
Adapters: |
12 Ports Duplex SC |
Installation: |
Din-rail Mounting |
Material: |
Aluminum |
Color: |
Gray |
Operating Temperature: |
-40°C To 80°C |

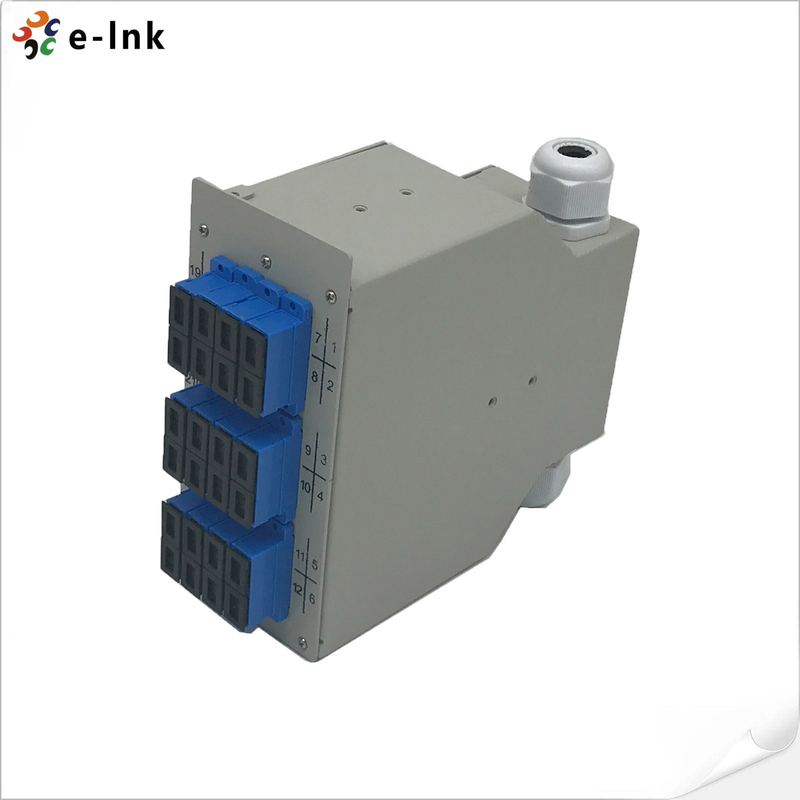

Din Rail Mount Fiber Patch Panel 12 Ports Duplex SC Adapters
12 Port Fiber Splice Closures Advantages
► Up to 12 ports SC-Duplex adapters
► Space-saving installation
► IP20 protection
► 2x rear entries (PG 11 cable gland)
► Grey color (RAL 7035)
► Other configurations on demand
Din Rail Fiber Patch Panel Technical Indexes
|
Application |
Harsh environment, |
|
Design |
Splice distributor |
|
Color |
Gray |
|
Dimensions (LxWxH) |
131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch) |
|
Weight |
0.6KG |
|
Mounting Options |
DIN-Rail |
|
Connections/Interfaces |
|
|
Cable access/outlet |
From top or bottom, straight or inclined |
|
Equipped Adapters |
|
|
SC-Duplex |
Max. 12pcs |
|
Mechanical |
|
|
Strain Relief |
PG gland |
12 Port Fiber Patch Panel Overview
E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes making it light weight and compact in size. Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount equipment. The patch panel can be loaded with 12 SC duplex adapters.
12 Ports Din Rail Fiber Splice Box Ordering Information
|
Model |
Description |
|
LNK-FSB-D-12SC |
12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters |
