Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-3011WSFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Gigabit Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
Fiber Gigabit Media Converter |
Application: |
FTTH/FTTN/FTTO/FTTA |
Power Supply: |
External Power Supply |
Power Consumption: |
5W |
Data Rate: |
10/100/1000Mbps |
Fiber Port: |
SFP Slot (SC/FC/ST Optional) |
Dimensions (W X D X H): |
71 X 94 X 26 Mm |
Warranty: |
3 Years |
Product Name: |
Fiber Gigabit Media Converter |
Application: |
FTTH/FTTN/FTTO/FTTA |
Power Supply: |
External Power Supply |
Power Consumption: |
5W |
Data Rate: |
10/100/1000Mbps |
Fiber Port: |
SFP Slot (SC/FC/ST Optional) |
Dimensions (W X D X H): |
71 X 94 X 26 Mm |
Warranty: |
3 Years |

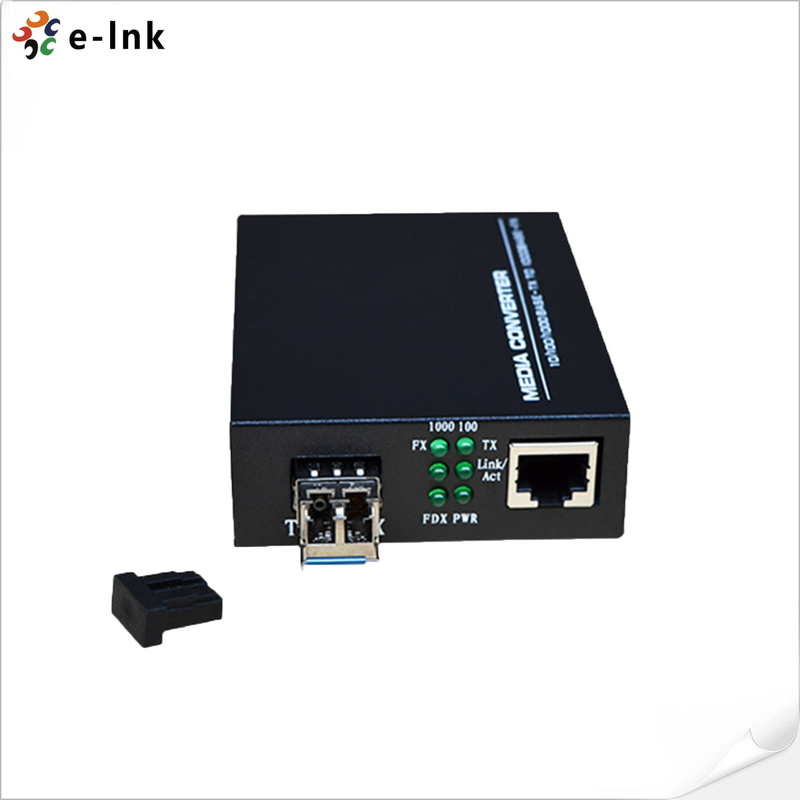

10/100/1000M Gigabit Ethernet Media Converter With External Power Supply
10/100/1000Mbps Media Switch Advantages
► Supporting inter-conversion between adaptive
► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Fiber Ethernet Media Converter Overview
LNK-3011WSFP is an Ethernet media converter used to convert media transmission between UTP copper cables and fiber optic SFP (Small Form Factor Pluggable) transceivers. It complies with the IEEE802.3, IEEE802.3u, IEEE802.3 z, and IEEE802.3ab standards. Currently, it supports two types of media network connections: 10Base-T/1000Base-TX/1000Base-T and 1000Base-SX/LX, converting the electrical signal of 10Base-T/100 Base-TX/1000 Base-T twisted pair to the optical signal of 1000Base-SX/LX. It extends the transmission distance of the network from 100 meters of copper cable to 120 kilometers of fiber optic cable.
Gigabit Fiber Media Converter Technical Indexes
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) |
|
single mode Dual-fiber: 20/40/60/80 Km |
|
|
single mode Single fiber: 20/40/60/80 Km |
|
|
Category-5 twisted pairs: 100m |
|
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
|
One optical port: SFP 3.3V |
|
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
|
Power supply |
External Power: AC90~240V input, 5V2A output |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
71 x 94 x 26 mm |
Commercial SFP Fiber Media Converter Ordering Information
|
LNK-3011WSFP |
10/100/1000Base-T to 1000Base-F,SFP slot, excl. SFP module, standalone, external power adaptor |
