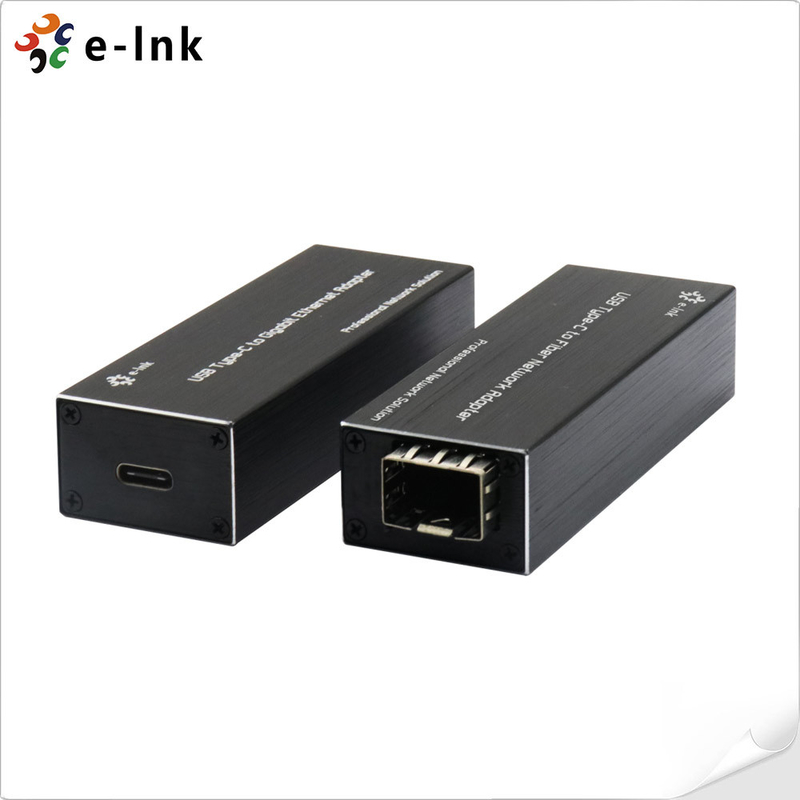

Fiber LAN Card USB 3.0 To SFP Gigabit Ethernet Network Adapter

Product Description:

LNK-TCF1000 Series Micro Mini USB-C to Fiber Network adapter has been designed for users that require a fast and stable internet connection through a fiber cable. Users of laptop/pc/tablet with type-C interface will particularly benefit from faster and more reliable access over Wifi.

At up to 2000Mbps of full-duplex bandwidth capacity, this USB-C LAN Card offers users up to 1000Mbps Internet access; features such as VLAN filtering packet processing will help to increase levels of performance, configuration and security within a standard-based environment.

Features:

The 1x100/1000Base-X SFP Slot + 1xTYPE-C USB3.0 Slot provides a fiber network connection to portable laptops or tablets, enabling Fiber-to-the-desk connectivity (FTTD). This enhances security, reducing the risk of data leaks.Thanks to the USB 3.0 compatibility, it provides high performance packet transfer rate. The module is highly portable, with no need for external power adapter and its plug-and-play installation ensures a easy setup. It supports full duplex with flow control and half duplex with back pressure operation.

The module is widely compatible with Windows, macOS and Linux, with certified drivers. This makes it an ideal choice for on-the-go professionals who need secure and reliable connection.

Technical Parameters:

Specifications are as follows:

• Standards: IEEE 802.1p Class of service
• IEEE 802.1Q VLAN Tagging
• IEEE 802.2 Logical Link Control (LLC)
• IEEE 802.3ac VLAN tagging
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control and Back pressure
• IEEE802.3u 100Base-TX/FX Fast Ethernet
• IEEE 802.3z 1000Base-X Gigabit Ethernet
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Chipset ID: Realtek RTL8213B
• Network Transfer Rate: 14,880pps (10Mbps);
• 148,800pps (100Mbps); 1,488,000pps (1000Mbps)
• Jumbo Frame Support: 9K max.
• Other: Supports power Down/Link down power saving.

The Software supports the following Operating Systems:

• Windows® 7, 8, 8.1, 10, 11
• Windows® Server 2008, 2012, 2016, 2019
• macOS 10.9 - 10.14, 11.0, 12.0, 13.0
• Linux® kernel 3.5 and up - LTS Versions only.

The Interface consists of:

• USB: 1 x USB-C 3.0
• SFP: 1 x SFP 1000Base-X or 100Base-FX (auto detection)

The device operates with a Power as follows:

• USB Bus Powered
• Power Consumption: 5W Max.

LED Indicators are as follows:

• L/A: Link/Activity

Dimensions are as follows:

• 78 x 27 x 18 mm
• Weight: 46g
• Casing: Aluminum Case
• Mounting Options: Desktop

Environmental Parameters are as follows:

• Operating Temperature: 0°C ~ 60°C (32° ~ 140°F)
• Storage Temperature: -10° ~ 70°C (14° ~ 158°F)
• Relative Humidity: 5% to 90% non-condensing
• MTBF: > 100,000 hrs

Applications:

Support and Services:

LNA Card provides 24/7 technical support and service to ensure that customers have the best experience possible. Our technical staff is available to answer questions or help troubleshoot any problems related to the product. We also offer a comprehensive warranty and repair program to ensure that customers can have the peace of mind that their product is covered should anything go wrong.

For more information about our technical support and service for USB-C LAN Card, please contact us.

Packing and Shipping:

The USB-C LAN Card should be packaged and shipped in the following manner:

• The product should be placed in a secure shipping box with adequate cushioning material around it.
• The box should be sealed properly with packing tape.
• The shipping label should include the sender's name, address, and contact information.
• The box should be labeled with the words “Fragile” and “Handle with Care”.
• The box should be marked with a “This Side Up” arrow.
• The box should be shipped via a reliable courier service.

Ordering Information:
