Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-AA18M2-2
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Active Optical Cable Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
10G Active Optical Cable |
Data Rate: |
Up To 10.5Gbps |
Cable Color: |
Orange |
Cable Jacket Material: |
PVC |
Connector Type: |
SFP+ To SFP+ |
Cable Type: |
AOC Cable |
Cable Length: |
2 Meters |
Operating Temperature: |
-5~75℃ |
Product Name: |
10G Active Optical Cable |
Data Rate: |
Up To 10.5Gbps |
Cable Color: |
Orange |
Cable Jacket Material: |
PVC |
Connector Type: |
SFP+ To SFP+ |
Cable Type: |
AOC Cable |
Cable Length: |
2 Meters |
Operating Temperature: |
-5~75℃ |

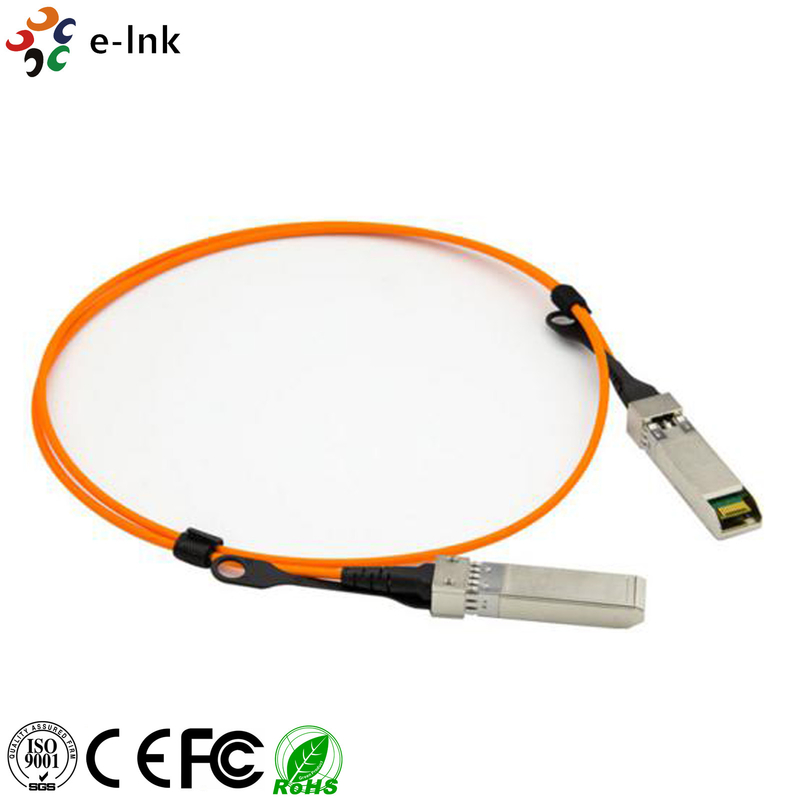

E-link's LNK-AA18MX-XXX SFP+ Active Optical Cable (AOC) is a 10Gbps solution that allows you to connect to 10G Ethernet and data centers. With support of MMF, this integrated cable can transmit 10Gbps data in each direction over distances up to 100m. In addition, this AOC is compliant with SFP+ MSA, and it provides low power consumption and lightweight feature.
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.
Table.1 Absolute maximum ratings
| Parameter | Symbol | Min | Max | Units |
| Storage temperature | Ts | -20 | 85 | ℃ |
| Relative Humidity | RH | 5 | 85 | % |
| Supply Voltage | Vc | -0.3 | 3.6 | V |
| Supply Current | Icc | 450 | mA |
Table.2 Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Standard Tc | 0 | 25 | 70 | °C |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Power Supply Current | Icc | 60 | 260 | mA | |
| Power Dissipation | PD | 600 | 800 | mW | |
| Data Rate | DR | 10.3125 | Gbps | ||
| Transmission Distance | TD | 100 | m |
Table.3 Diagnostics Specification
| Parameter | Range | Unit | Accuracy | Calibration |
| Temperature | 0 to 70 | ℃ | ±3℃ | Internal / External |
| Voltage | 3.0 to 3.6 | V | ±3% | Internal / External |
| Bias Current | 0 to 100 | mA | ±10% | Internal / External |
| TX Power | -5 to -1 | dBm | ±3dB | Internal / External |
| RX Power | -30 to 0 | dBm | ±3dB | Internal / External |
We provide technical support and service for the Fiber Optic Accessories product line. Our knowledgeable staff can answer your questions about product installation and troubleshooting, provide advice on product selection, and help you find the right solutions for your needs. We also offer remote support via phone, email, and live chat for all customers.
Our technicians are experienced in all aspects of fiber optic technology, including connector and cable installation, testing and certification, and maintenance of fiber optic networks. We strive to provide the highest level of customer service and satisfaction.
For more information on our Fiber Optic Accessories technical support and service, please contact us.
Packaging and Shipping of Fiber Optic Accessories:
The fiber optic accessories will be packaged in cardboard boxes to ensure that they are securely protected during transit. The boxes will be marked with the sender’s and recipient’s address, as well as a unique tracking number. The accessories will then be shipped via a reliable and secure shipping service that offers tracking and insurance.
| Part Number | Data Rate | Length | Connector Type | Cable Type | Temp. Range | Cable Jacket |
| LNK-AA18M2-1 | Up to 10.5G | 1m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-1.5 | Up to 10.5G | 1.5m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-2 | Up to 10.5G | 2m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-2.5 | Up to 10.5G | 2.5m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-3 | Up to 10.5G | 3m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-3.5 | Up to 10.5G | 3.5m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-5 | Up to 10.5G | 5m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-7 | Up to 10.5G | 7m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-10 | Up to 10.5G | 10m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-15 | Up to 10.5G | 15m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-20 | Up to 10.5G | 20m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-25 | Up to 10.5G | 25m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA18M2-30 | Up to 10.5G | 30m | SFP+ to SFP+ | AOC Cable | 0-70℃ | PVC |
