Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-AA4CM2-5
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Active Optical Cable Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month

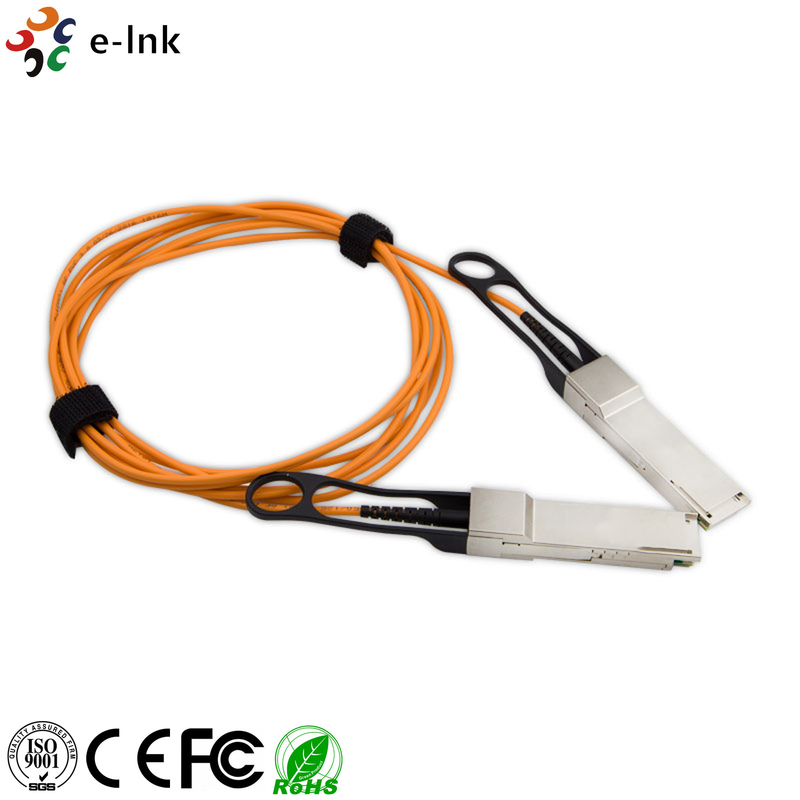

Product Name: |
40G Active Optical Cable |
Cable Color: |
Orange |
Connector Type: |
QSFP+ To QSFP+ |
Cable Type: |
AOC Cable |
Cable Length: |
5 Meters |
Cable Jacket Material: |
PVC |
Transmission Distance: |
100 Meters |
Operating Temperature: |
-5~75℃ |
Product Name: |
40G Active Optical Cable |
Cable Color: |
Orange |
Connector Type: |
QSFP+ To QSFP+ |
Cable Type: |
AOC Cable |
Cable Length: |
5 Meters |
Cable Jacket Material: |
PVC |
Transmission Distance: |
100 Meters |
Operating Temperature: |
-5~75℃ |
E-link's LNK-AA4CMX-XXX series are an active optical cable (AOC) ideal for high-throughput data networks requiring fast, reliable connections. Advantages of this product include:
The Quad Small Form-factor Pluggable (QSFP) is a 40GBASE-SR4 compliant. It is compliant with QDR, DDR, SDR (Infiniband) and capable of bi-directional parallel link. Its transmission rate is 10.3125Gb/s per lane, x4 channels and is up to 100m in length. Furthermore, it offers low power consumption and two types of connectors, low profile connectors and electrical 38-pin connectors. It also has a bundle of multi-mode fiber array, 850nm VCSEL four array and PIN diode four array. The I2C management interface ensures that the device is able to stand from 0 to 70 degree case temperature. The power supply voltage used for this device is 3.3V.
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.
Table.1 Absolute maximum ratings
|
Parameter |
Conditions |
Min |
Max |
Units |
|
Power supply voltage at 3.3V |
|
-0.5 |
3.75 |
V |
|
Voltage on I/O pads |
|
-0.5 |
VDD+0.5 |
V |
|
Differential Input Swing |
|
|
1.5 |
Vpp |
|
Storage temperature |
Non-condensing |
-40 |
85 |
Celsius |
|
Powered case temperature range |
Non-condensing |
-5 |
70 |
Celsius |
|
Relative Humidity |
|
5 |
85 |
% |
|
Static discharge voltage onhigh speed pins |
Human body model |
|
500 |
V |
|
Static discharge voltage on other pins |
Human body model |
|
2000 |
V |
|
Air discharge to QSFP case |
EN61000-4-2 Criterion B Test |
|
15 |
kV |
|
Contact discharge to QSFP case |
EN61000-4-2 Criterion B Test |
|
8 |
kV |
Table.2 Recommended Operating Conditions
|
Parameter |
Conditions |
Min |
Typ. |
Max |
Units |
|
Data rate per lane |
8B/10BCoding, 64B/66B Coding |
1 |
10.3125 |
10.5 |
Gbps |
|
3.3V Supply Voltage |
|
3.13 |
3.3 |
3.47 |
V |
|
Power supply noise including ripples |
1kHz to frequency of operation mersured at VCC_HOST |
|
|
50 |
mVpp |
|
Case temperature |
|
0 |
35 |
70 |
Celsius |
Table.3 Transmitter Specification (Electrical)
|
Parameter |
Test Point |
Min |
Max. |
Units |
Conditions |
|
Single ended input voltage tolerance |
TP1a |
-0.3 |
4 |
V |
Referred to TP1 signal common(Internally AC coupled) |
|
Differential input voltage swing |
TP1a |
200 |
1600 |
mVpp |
Peak to peak differential |
|
AC common-mode input voltage tolerance |
TP1a |
15 |
- |
mV |
RMS |
|
Differential input return loss |
TP1 |
See IEEE |
- |
dB |
10MHz to 11.1GHz |
|
Differential to common-mode input return loss |
TP1 |
10 |
- |
dB |
10MHz to 11.1GHz |
|
J2 jitter tolerance |
TP1a |
0.17 |
- |
UI |
|
|
J9 jitter tolerance |
TP1a |
0.29 |
- |
UI |
|
|
Data Dependent Pulse Width Shrinkage (DDPWS) tolerance |
TP1a |
0.07 |
- |
UI |
|
|
Eye mask coordinates: |
TP1a |
Specification values |
|
UI |
Hit ratio = 5 x 10-5 |
Table.4 Receiver Specification (Electrical)
|
Parameter |
Test Point |
Min |
Typ |
Max. |
Units |
Conditions |
|
|
Single ended input voltage |
TP4 |
-0.3 |
- |
4 |
V |
Referred to signal common |
|
|
AC common-mode input |
TP4 |
- |
- |
7.5 |
mV |
RMS |
|
|
Differential Output |
TP4 |
- |
320 |
- |
mV |
See details in the |
|
|
- |
420 |
- |
mV |
Default setting |
|||
|
- |
740 |
- |
mV |
|
|||
|
- |
- |
50 |
mV |
Squelched state |
|||
|
Termination mismatch |
TP4 |
- |
- |
5 |
% |
|
|
|
Differential output |
TP4 |
See IEEE 802.3ba |
|
- |
dB |
10MHz to 11.1GHz |
|
|
Common-mode output |
TP4 |
See IEEE 802.3ba |
- |
- |
dB |
10MHz to 11.1GHz |
|
|
Output transition time, |
TP4 |
28 |
- |
- |
ps |
|
|
|
J2 jitter output |
TP4 |
- |
- |
0.42 |
UI |
|
|
|
J9 jitter output |
TP4 |
- |
- |
0.65 |
UI |
|
|
|
Eye mask coordinates: |
TP4 |
Specification values
|
|
|
UI |
Hit ratio = 5 x 10-5 |
|
Our company offers comprehensive technical support and service for Fiber Optic Accessories. We provide 24/7 customer service to help you with any questions or feedbacks that you may have. Our technical team can help you troubleshoot any issues you may have with your fiber optic accessories and provide you with advice on how to optimize the performance of the product. Additionally, our team can help you select the right fiber optic accessory for your specific needs. If you need to upgrade or replace your existing fiber optic accessory, we can also help you with that.
We package our fiber optic accessories with specialized materials to ensure maximum protection during transit. All products will be securely packed in bubble wrap and cardboard boxes to prevent any damage.
We ship all orders via UPS, FedEx, and UPS. Depending on the destination, size, and weight of the package, we will choose the most suitable carrier. We are also able to arrange for expedited shipping on request.
Please note that all shipping costs are non-refundable. We are not responsible for any delays due to unforeseen circumstances or incorrect shipping addresses.
If you have any questions regarding our packaging and shipping, please don't hesitate to contact us.
| Part Number | Data Rate | Length | Connector Type | Cable Type | Temp. Range | Cable Jacket |
| LNK-AA4CM2-1 | Up to 40G | 1m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-2 | Up to 40G | 2m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-3 | Up to 40G | 3m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-5 | Up to 40G | 5m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-7 | Up to 40G | 7m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-10 | Up to 40G | 10m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-15 | Up to 40G | 15m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-20 | Up to 40G | 20m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-25 | Up to 40G | 25m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-30 | Up to 40G | 30m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-50 | Up to 40G | 50m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-75 | Up to 40G | 75m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
| LNK-AA4CM2-100 | Up to 40G | 100m | QSFP+ to QSFP+ | AOC Cable | 0-70℃ | PVC |
