Product Name: |
40G QSFP Passive Copper Cable |
Data Rate: |
Up To 40G |
Connector Type: |
Passive Copper |
Wire Gauge: |
AWG30 |
Cable Length: |
2 Meters |
Cable Jacket: |
PVC |
Power Supply: |
+3.3V |
Operating Temperature: |
0-70℃ |
Product Name: |
40G QSFP Passive Copper Cable |
Data Rate: |
Up To 40G |
Connector Type: |
Passive Copper |
Wire Gauge: |
AWG30 |
Cable Length: |
2 Meters |
Cable Jacket: |
PVC |
Power Supply: |
+3.3V |
Operating Temperature: |
0-70℃ |

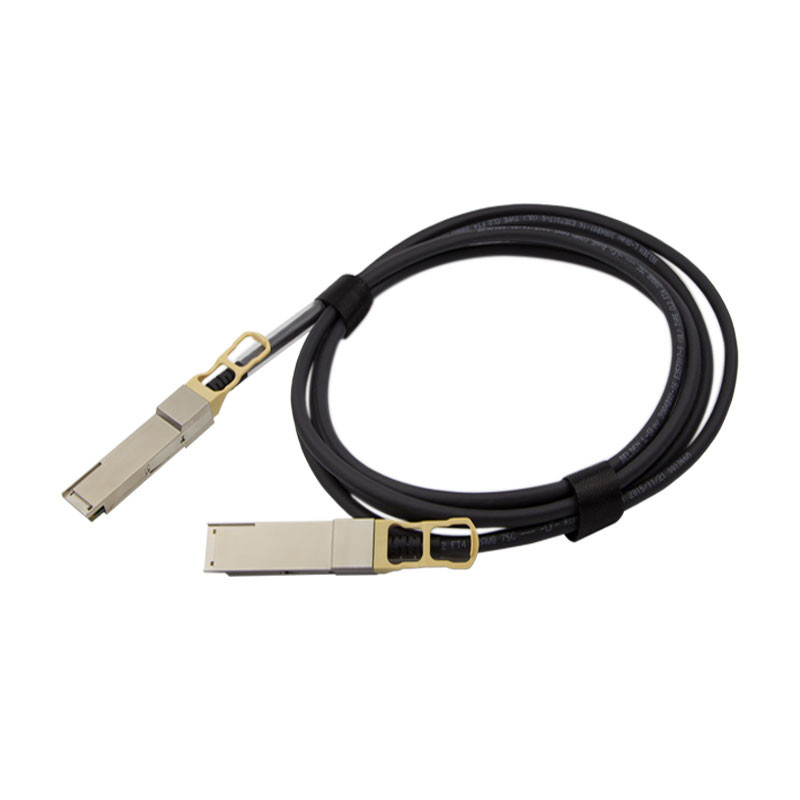

Elink's LNK-DP3CXX-XXX High Speed 40G QSFP+ to 10G SFP+ Direct Attach Cable copper cable assemblies offer an economical alternative for short reach 4X applications.
The QSFP+ connectivity component meets the parameters delineated by the QSFP Multi-Source Agreement in terms of form factor, optical/electrical connections, and design. It offers 4 serial channels running at 10Gbps each, representing a total aggregate 40Gbps, in a single pluggable interface, and all that 3 times denser than SFP+ interconnects.
Moreover, they are programmed using EEPROM signature to differentiate between copper and fiber optic cables, while the hot swappable feature renders them ideal for rack-to-rack and withinrack deployment. Not to mention, their low power disbursement keeps energy costs to a minimum.
The Hybrid cable is compliant to the Small Form Factor SFF-8436 and SFF-8431, enabling multi-gigabit data rates ranging from 1 Gb/s to 10 Gb/s per channel, and an aggregate data rate of up to 40 Gb/s (4 x 10Gb/s). It can provide transmission up to 5m in length (under the passive limiting situation). The connectors used are the high-density QSFP 38-PIN and SFP 20-PIN.
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.
Table.1 Absolute maximum ratings
| Parameter | Symbol | Min | Max | Unit |
| Maximum Supply Voltage | Vcc | 0 | 3.6 | V |
| Storage Temperature | Ts | -40 | 85 | °C |
| Relative Humidity | RH | 5 | 95 | % |
Table.2 Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Standard Tc | 0 | 25 | 70 | °C |
| Storage Temperature | Ts | 0 | 70 | °C | |
| Relative Humidity | RH | 5 | 95 | % | |
| Data Rate | 10/40 | Gbps |
Table.3 Product Characteristics
| Test Type | Test Item | Target | Reference | |
| Differential Impedence | 100+/ -10ohm (Rise time of 50 ps (20 %- 80 %)) | IEEE Std.802.3ba | ||
| Electrical Characteristics | Differential Mode RL |
Frequency(GHz) 0.1-1.0 1.0-4.1 |
SDD11 & SDD22(max) -10 -(12-2*sqrt(f)) |
Per table 10 of 1B Cable MOL.v 0.68 |
| Differential IL |
Frequency 100MHz 200MHz 625MHz 1250MHz 1875MHz 2500MHz |
SDD21(min) -8 -8 -8.5 -12.1 -14.7 -17 |
Ref table 43 of Infiniband Architecture Spec, V2 | |
| NEXT | ≥26dB @ 10MHz to 5.0GHz | / | ||
| Intra-Pair Skew | ≤100 ps(TDT Method) Rise time of 35 ps | (20 %- 80 %) | ||
| Intra-Pair Skew | ≤400 ps(TDT Method) Rise time of 35 ps | (20%~80 %) | ||
|
Environmental Characteristics
|
Operating Temperature | -40~85°C | Cable operating temp. range | |
| Thermal Shock | No evidence of physical damage | EIA-364-32 Test | ||
| Cyclic Temp. & Humidity | No evidence of physical damage | EIA-364-31 Method III,Test Cond A | ||
| Salt spray | 48 hours salt spraying after shell corrosive area less than 5% | EIA-364-26 | ||
| Temperature Life | Performance meets the specification requirement | EIA-364-17, Method A, Test Cond 3 at 105°±2°C | ||
|
Mechanical Characteristics
|
MechanicaI Vibration | Performance meets the specification requirement | EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis. | |
| Cable Flex | Performance meets the specification requirement | EIA-444-1B | ||
| Mechanical Shock | Performance meets the specification requirement | EIA-364-27B, TG-G. 3 times in 6 directions, 100g, 6ms | ||
| Cable plug Insertion | 40N Max. | Per QSFP MSA Rev 1.0 | ||
| Cable plug extraction | 30N Max. | Per QSFP MSA Rev 1.0. | ||
| Latch retention force | 50N Min. No evidence of physical damage | EIA-364-13 | ||
| Durability | 50 Time. No evidence of physical damage | EIA-364-09; perform plug&unplug cycles | ||
We provide technical support and service for fiber optic accessories to ensure that our customers can get the most out of their product. Our team of experts is available to answer any questions you may have about the product and provide advice on best practices for installation and use.
We provide a variety of services including troubleshooting assistance, product installation, and technical support. Our team can provide instruction on how to use the product, recommend best practices, and offer advice on how to most efficiently use the product.
We also offer a range of maintenance services, including regular inspections and cleaning, as well as upgrades and repairs. Our team is available to provide assistance and advice for any issues that you may be having with your product.
We are committed to providing quality technical support and service for our fiber optic accessories. Our team is available to answer any questions you may have and provide assistance with installation, troubleshooting, maintenance, and repairs.
Fiber optic accessories are packaged and shipped with great care and attention to detail. All products are wrapped securely and labeled with the contents and shipping information. We use high quality packing materials that are designed to protect the products during transit.
We use a variety of shipping methods, depending on the size and weight of the order. We use standard ground, air, and express services for both domestic and international orders. We also offer expedited shipping options for urgent orders. All orders are insured and tracked to ensure they arrive safely and on time.
We understand that packaging and shipping are important for a successful online shopping experience. We take special care to ensure that your products are packaged and shipped with the utmost care.
| Part Number | Data Rate | Length | Wire Gauge | Connector Type | Temp. Range | Cable Jacket |
| LNK-DP3C30-1 | Up to 40G | 1m | AWG30 | Passive Copper | 0-70℃ | PVC |
| LNK-DP3C30-2 | Up to 40G | 2m | AWG30 | Passive Copper | 0-70℃ | PVC |
| LNK-DP3C30-3 | Up to 40G | 3m | AWG30 | Passive Copper | 0-70℃ | PVC |
