Product Details
Place of Origin: china
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: ETH-IMC208MP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: 5-8work
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000pcs/month
Power Pin Assignment: |
4/5(+), 7/8(-) |
Port:: |
RJ45 |
Serial Port Line Distance (copper): |
1000 Meters |
Baud Rate: |
0 ~ 800kbps |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Port:: |
RJ45 |
Serial Port Line Distance (copper): |
1000 Meters |
Baud Rate: |
0 ~ 800kbps |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Waterproof 802.3at Industrial PoE Switch 2 Port 1000X SFP Managed
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
Industrial Managed SFP Ethernet Switch Advantages
Overview
ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

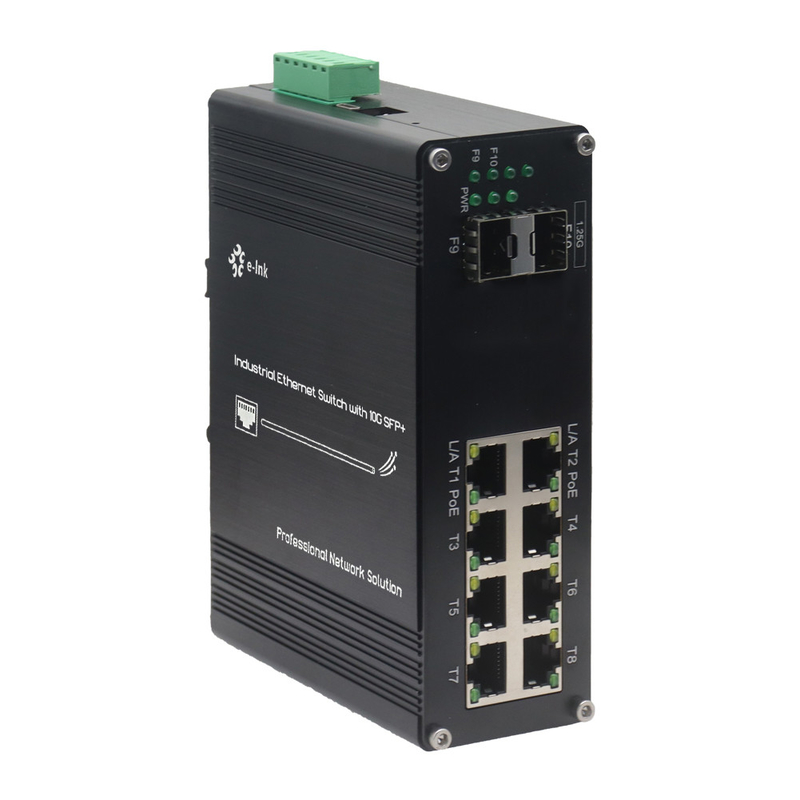

Industrial Managed SFP Ethernet Switch Pictures
Industrial Managed SFP Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3ae 10GBase-R | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| 1,488,000,000pps (10000Mbps) | |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| RS485: | 1 x RS485 (Optional) |
| Optical Port: | 2 x 1000Base-X SFP |
| USB-C: | 1 x USB-C (for Management) |
| RS485 Serial Interface (Optional) | |
| Physical interface | Industrial standard 3-pin screw terminal |
| Data type | 1Ch RS485 Bi-Direction |
| RS-485 signals | Data +, Data-, GND |
| Serial port line distance (copper) | 1000 meters |
| Baud rate | 0 ~ 800kbps |
Industrial Managed SFP Ethernet Switch Application
Industrial Managed SFP Ethernet Switch Ordering Information
| Model | Description |
| ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
