Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-KVM-DVI-1D1BA1GO
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: DVI Fiber Extender Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
DVI USB KVM Fiber Transmitter Receiver |
Video Resolution: |
1920*1200P 60Hz |
DVI Standard: |
DVI 1.0 And HDCP 1.2 |
Audio Signal Type: |
Bidi Stereo Audio |
Wavelength: |
Single Mode 1310nm |
Transmission Distance: |
Up To 20KM |
Baud Rate: |
Max 115200bps For RS232 |
Power Adapter: |
1-year Warranty |
Product Name: |
DVI USB KVM Fiber Transmitter Receiver |
Video Resolution: |
1920*1200P 60Hz |
DVI Standard: |
DVI 1.0 And HDCP 1.2 |
Audio Signal Type: |
Bidi Stereo Audio |
Wavelength: |
Single Mode 1310nm |
Transmission Distance: |
Up To 20KM |
Baud Rate: |
Max 115200bps For RS232 |
Power Adapter: |
1-year Warranty |

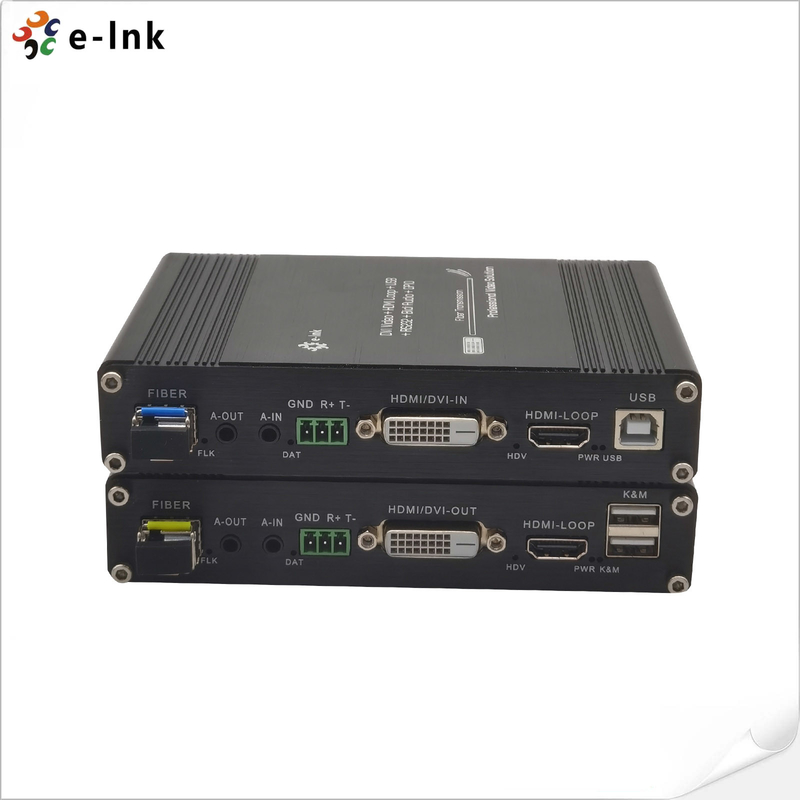

The LNK-KVM-DVI-1D1BA1GO Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
► Transmits DVI video signals up to 60km over one fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Support HDMI loop out
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Resolution |
1920*1200@60Hz 1920*1080@50Hz |
|
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M | Interface |
To PC: MINI-USB |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| Signal direction | Unidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance | standard 10km | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 168*115*28mm | |
| The warranty | 1-year warranty | |
We provide technical support and service to users of our DVI Fiber Converter. This includes providing helpful information about how to use the product, as well as offering tips and advice on troubleshooting and resolving any issues that may arise. We also provide access to our online customer service portal, where customers can find additional resources and answers to their questions.
We pride ourselves on offering excellent customer service and support. Our knowledgeable team of technicians can provide personalized assistance to help you get the most out of your DVI Fiber Converter. Whether you need help setting up your device or troubleshooting a technical issue, we are here to help.
We also provide a variety of resources to help users learn more about the product and its features. We have a comprehensive online user manual, video tutorials, and an active user forum where customers can ask questions and get answers from experienced users.
If you need help with your DVI Fiber Converter, please contact us and our knowledgeable staff will be happy to assist you.
The DVI Fiber Converter is packaged in a box to ensure safe transportation and storage. Each box contains the following components:
The box is then sealed and placed in a bubble wrap envelope or corrugated box for shipping. The shipping label should include the following information:
| Model | Description |
| LNK-KVM-DVI-1D1BA1GO | 1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
