Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-MDA4K-S40
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: DVI Fiber Extender Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
4K DVI Fiber Converter |
Video Format: |
DVI 1.0, HDCP 1.2 |
Video Support: |
Up To 4Kx2K 60Hz |
Transmission Mode: |
Single Mode Simplex LC |
Transmission Distance: |
40KM |
Audio Interface: |
3.5MM External Stereo Audio |
Dimension (WxDxH): |
73x44x17mm |
Weight: |
200g |
Product Name: |
4K DVI Fiber Converter |
Video Format: |
DVI 1.0, HDCP 1.2 |
Video Support: |
Up To 4Kx2K 60Hz |
Transmission Mode: |
Single Mode Simplex LC |
Transmission Distance: |
40KM |
Audio Interface: |
3.5MM External Stereo Audio |
Dimension (WxDxH): |
73x44x17mm |
Weight: |
200g |

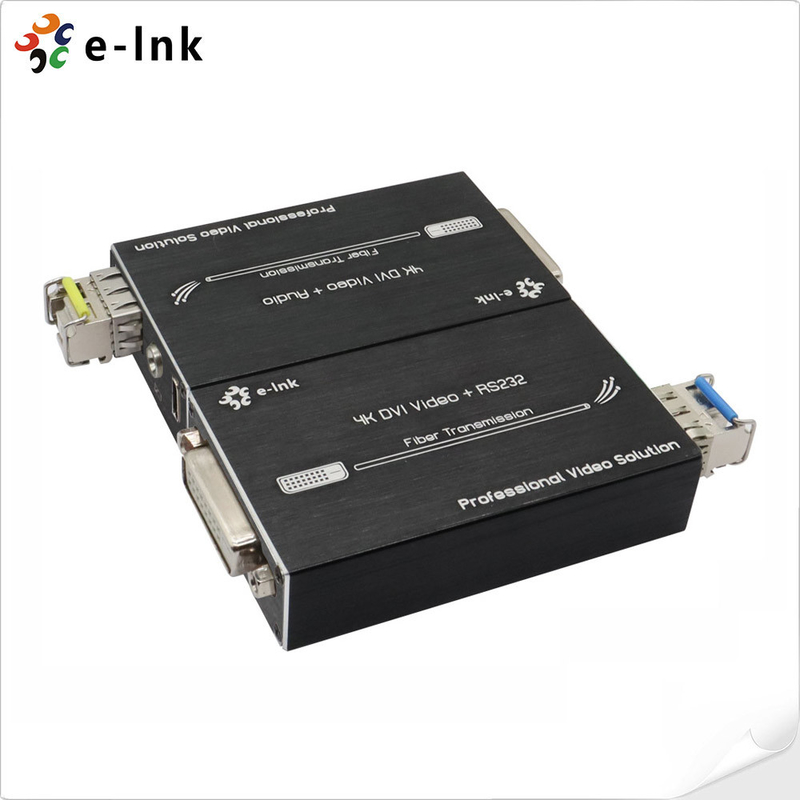

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.
The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
► DVI 1.0 and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC HPDT Signal Support
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support 3.5mm External Stereo Audio
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
| Type of Extender | Fiber Transmitter for DVI signal over Optical Fiber Cable |
| Input Signals | DVI |
| Connector | DVI-D |
| Signal Support | DVI 1.0 format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID | Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
| Audio Interface | 3.5MM external stereo audio |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) | |
| Operating Temperature | -10 ~ + 50°C |
| Storage Temperature | -20 ~ + 80°C |
| Humidity | 5% to 90% RH (non-condensing) |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5V DC (USB-C) |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
At DVI Fiber Converter, we understand the importance of providing reliable technical support and service for our products. We offer a variety of resources to help you get the most out of your DVI Fiber Converter products.
Our technical support team is available to answer any questions you have about your DVI Fiber Converter product, and help you troubleshoot any issues you may be having. Our team is available by phone, email, and live chat, to provide you with timely and helpful assistance.
We provide extensive product documentation including user manuals, technical specifications, installation guides, and more. This documentation can be accessed on our website, or downloaded directly to your device for easy reference.
All of our DVI Fiber Converter products come with a one-year warranty. During this time, we will repair or replace any defective parts free of charge. For more information on our warranty policy, please visit our website.
DVI Fiber Converter Packaging and Shipping:
The DVI Fiber Converter should be packaged and shipped in a cardboard box with appropriate cushioning material to prevent damage during transit. The box should be properly sealed and labeled with the product name, model number, and shipping address. The box should also have a warning label stating that the product contains electric components and should not be opened or handled by unqualified personnel.
| Model | Description |
| LNK-MDA4K-MM | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S20 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S40 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S80 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
