Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-PSE9501G
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: PoE Injector Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pcs per month
Product Name: |
Gigabit PoE Injector |
Power Output: |
95 Watt |
Input Power: |
DC 48V-57V |
Data Rate: |
10/100/1000Mbps |
Pin Assignment: |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
Operating Temperature: |
0℃~+40℃ |
Product Name: |
Gigabit PoE Injector |
Power Output: |
95 Watt |
Input Power: |
DC 48V-57V |
Data Rate: |
10/100/1000Mbps |
Pin Assignment: |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
Operating Temperature: |
0℃~+40℃ |

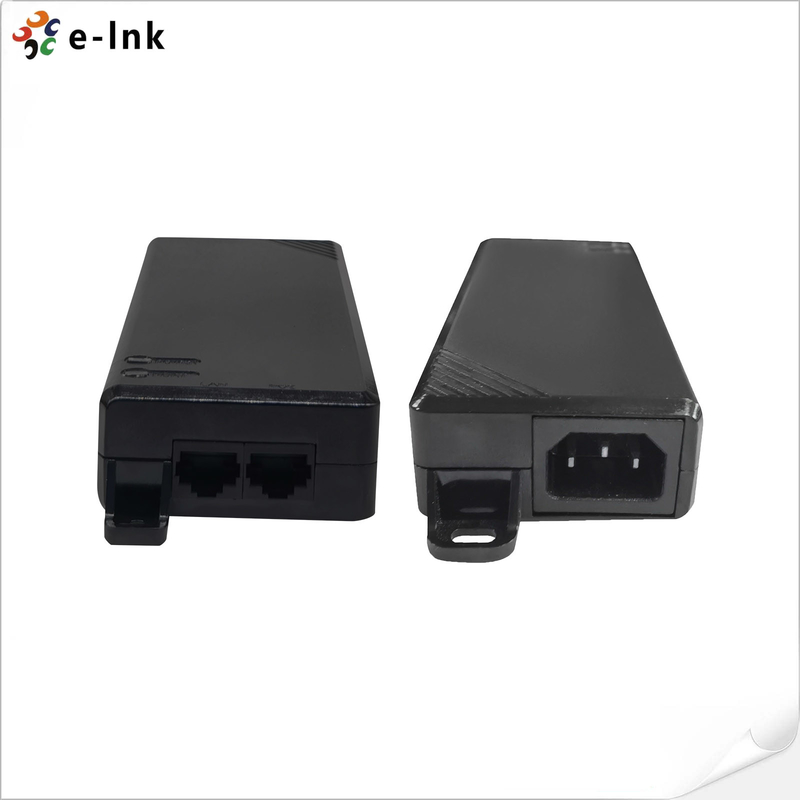

The LNK-PSE9501G 95W – 56V Gigabit PoE Injector is a high-quality midspan designed to take advantage of the IEEE 802.3bt standard to deliver up to 95W. It's a single-port, indoor injector perfect for powering access points, network cameras, videophones, thin clients, and other high-power terminal equipments that require a great deal of power.
The injector is also backward compatible and safe to use with any IEEE802.3af/at device. The plug-and-play design ensures a quick and easy install with your existing Ethernet infrastructure, while also ensuring future proofing of your network. The LNK-PSE9501G thus standardizes high-power PoE devices and eliminates the need for extra cabling or proprietary power supplies.
Overall, the LNK-PSE9501G 95W – 56V Gigabit PoE Injector is perfect for powering your most demanding applications while keeping your network future-ready.
This product provides up to 95 watts of Power over Ethernet (PoE) power that meets IEEE802.3af/at/bt standard and can be used for 10/100/1000Base-T. With the limited Power Source feature, it requires a low no-load power consumption of less than 0.5 watts. It also comes with two LED indicators that will light up for Power LED (green) and PoE LED (orange).
It comes with vital protection features such as over-voltage, load, temperature and short-circuit protection. This product provides a safe and reliable power source for wireless access points. The automatic detection and protectionof non-standard ethernet terminals allows the injection of 56 volts DC through a CAT 5 cable and uses all four pairs for remote devices such as wireless AP, IP phone, web camera, and other functioning powered devices.
|
Ethernet |
|
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: |
High Power PoE (95W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A max. |
| Output Voltage: | DC 48-57V, 2A |
| Power Consumption: | 95 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| Port: | RJ45 |
| Power Pin Assignment | Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
| PoE Power Output | DC 48V-57V/95-watt PoE via 2-pairs |
| LED Indicators | |
| Power: | Power Status |
| Port: | PoE Status |
| Dimensions (W×D×H): | 147 x 62 x 30mm |
| Weight: | 0.45Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop/Wall-mount |
We provide comprehensive technical support and service for our PoE Injector Adapter product, including:
Our experienced technical staff is available to answer your questions and provide assistance whenever you need it.
We package and ship PoE Injector Adapter with the utmost care, and take all necessary precautions to ensure your product arrives safely. All shipping is done through a trusted third-party carrier.
The PoE Injector Adapter comes in a cardboard box with foam padding for additional protection. Inside the box, the product is further secured with bubble wrap and a foam insert.
We offer overnight, two-day, and standard delivery options. All orders are shipped within 24 hours of purchase, and tracking information is provided for every order.
| Model | Description |
| LNK-PSE9501G | 95-watt High Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
