Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-1200MH-POE
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: PoE Injector Adapter standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Transfer Rate (PHY):: |
1200Mbps |
Range:: |
Up To 500m |
Frequency Band: |
2~68 MHz |
Access-Method: : |
OFDM |
Powerline Connector:: |
EU, UK, AU And US |
Network Connector:: |
1x RJ45 10/100Base-TX |
Mark:: |
CE |
Dimension:: |
105 X 60 X 37 Mm (LxWxH) |
Transfer Rate (PHY):: |
1200Mbps |
Range:: |
Up To 500m |
Frequency Band: |
2~68 MHz |
Access-Method: : |
OFDM |
Powerline Connector:: |
EU, UK, AU And US |
Network Connector:: |
1x RJ45 10/100Base-TX |
Mark:: |
CE |
Dimension:: |
105 X 60 X 37 Mm (LxWxH) |
1200M HomePlug AV Powerline Adapter Advantages
►High-Speed powerline adapter with Ethernet interface
►The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality
►No need new wires and use at any power socket with up to 500 meters
►Provide DC55V power for the PoE PD over CAT5e / CAT6
►Provide 128-bit AES link encryption for Powerline networks
►Up to 1200Mbps data rate on Powerline networking
►Allow user to connect PCs and other devices conveniently via any power outlet at home
►IEEE 802.3at /af compliant Midspan or Endpoint (Option) PSE
Overview

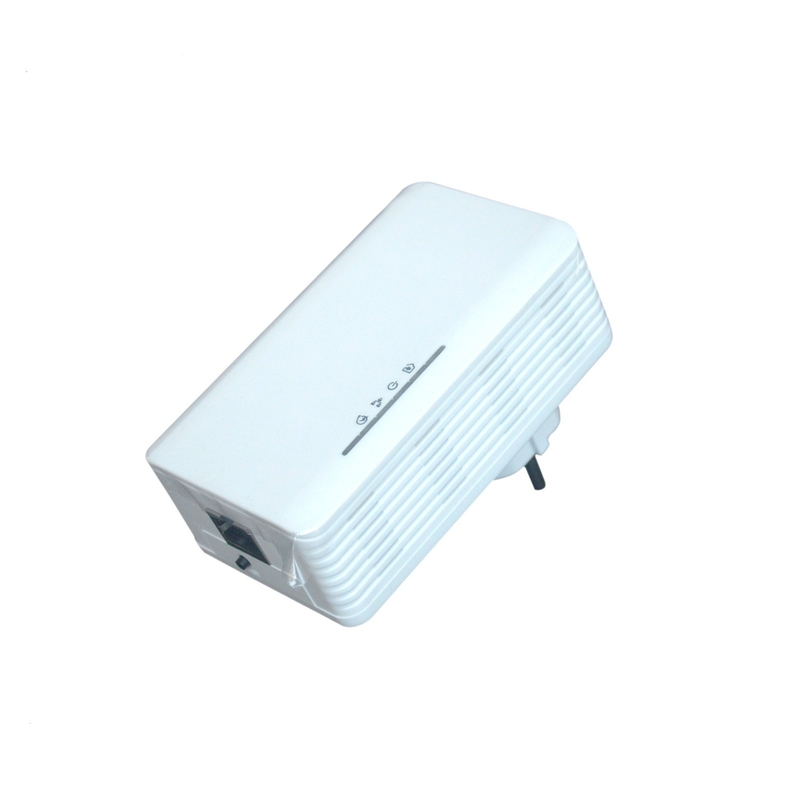

The LNK-1200MH-POE Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on a concept of
No New Wires data communications, and it transforms your in-house powerline into a networking
infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the
AC mains. It successfully reduce "dead spot", increase throughput and increase network coverage within
a home. Surf the Internet and share data at the speed up to 1Gbps PHY rates through powerline, And
Built-in PoE Injector to provide 55V/48V classification power via CAT5E / CAT6.
Technical Indexes
| Parameter | Specification |
| Transfer rate (PHY): | 1200Mbps |
| Range: | up to 500m |
| Frequency Band | 2~68 MHz |
| Access-Method: | OFDM |
| Powerline Connector: | EU, UK, AU and US |
| Network Connector: | 1x RJ45 10/100Base-TX |
| Encoding: | 128Bit AES-Encryption with key management |
| LED-Displays: | PLC (PLC signal light) |
| ACT | |
| PWR (power light) | |
| ETH (Ethernet light) | |
| PoE (POE light) | |
| Power supply: | 100~240 VAC, 50/60 Hz |
| Power over Ethernet: | PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W |
| Power consumption: | 3.9 watts without PoE terminal, 35 watts maximum |
| Supported Standards: |
IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2 |
| Operating Systems: | Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems |
| Housing: | Plastic housing |
| Environment: | Temperature in use: 0 ~ 70 °C |
| Humidity in use: 10% ~ 85% (non condensing) | |
| Temperature storage: -20 ~ 70 °C | |
| Humidity storage: 5% ~ 90% (non condensing) | |
| Mark: | CE |
| Dimension: | 105 x 60 x 37 mm (LxWxH) |
| Weight: | 180 grams (only adapter) |
| 500 grams (incl. accessories and packaging) | |
| Package contents: | 1x PoE Powerline Adapter |
| 1x RJ45 patch cable 1.5m | |
| 1x CD-ROM with manual & software |
Application
Ordering Information
| Item | Description |
| LNK-1200MH-POE | 1200Mbps HomePlug AV Powerline Adapter with PoE Injector, IEEE802.3af/at, PoE Power: 30W |
