Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-H4K101
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: To be negotiated
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500 Pair/month
Keyword: |
HDMI Fiber Extender |
Connector: |
Female HDMI Type A |
Interface: |
SFP Model – LC Connector |
Interface Bandwidth: |
10Gbps |
Transmission Distance: |
OM3 Multi-mode Fiber: Maximum 300m， Single-mode Fiber: Standard 2km；maximum 60km |
Power Supply: |
The Power Adapter: DC 5V/2A |
Keyword: |
HDMI Fiber Extender |
Connector: |
Female HDMI Type A |
Interface: |
SFP Model – LC Connector |
Interface Bandwidth: |
10Gbps |
Transmission Distance: |
OM3 Multi-mode Fiber: Maximum 300m， Single-mode Fiber: Standard 2km；maximum 60km |
Power Supply: |
The Power Adapter: DC 5V/2A |

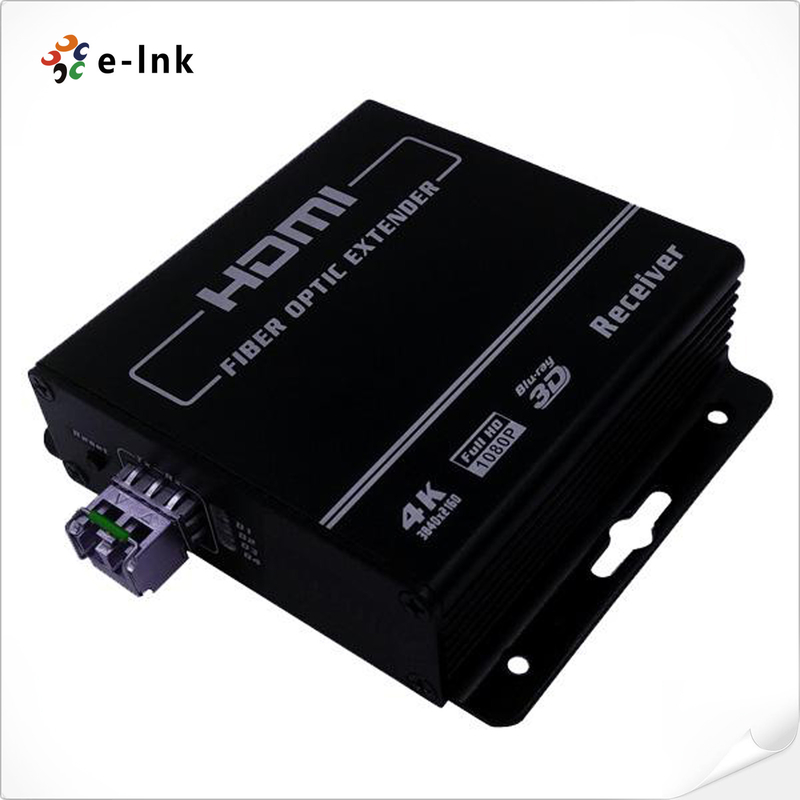

The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
HDMI Fiber Extender Advantages
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► Support video resolution up to 3840*2160@30Hz, 3D signal;
► Compliance with HMDI 1.4; High compatibility;
► Transmitter includes EDID memory to cache the EDID from any display;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Technical Indexes
|
|||||||||||||||||||||||||||||||||||||||
Ordering Information
| Item | Description |
| LNK-H4K101 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module |
