Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-108M
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
HDMI Fiber Extender |
Signal Support: |
HDMI 2.0 |
Resolution Range: |
4K@60Hz; 4K@30Hz/1080p/720p |
Input Interface: |
HDMI, DC 5V |
Fiber Connector: |
1 X LC Connector |
Fiber Cable Type: |
OM4 Multi Mode |
Weight: |
0.1 Kg / 0.22 Lb |
Warranty: |
2 Year Free Warranty |
Product Name: |
HDMI Fiber Extender |
Signal Support: |
HDMI 2.0 |
Resolution Range: |
4K@60Hz; 4K@30Hz/1080p/720p |
Input Interface: |
HDMI, DC 5V |
Fiber Connector: |
1 X LC Connector |
Fiber Cable Type: |
OM4 Multi Mode |
Weight: |
0.1 Kg / 0.22 Lb |
Warranty: |
2 Year Free Warranty |

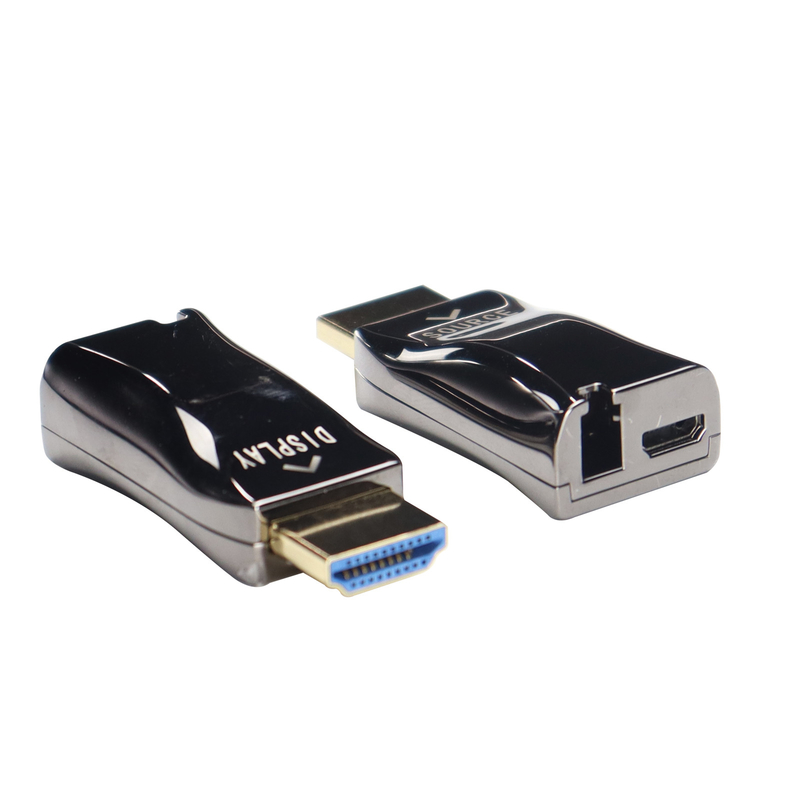

The LNK-108M is an outstanding device that enables the transmission of 4K/60Hz video signals over fiber up to 984ft/300m to displays. This feature allows secure data without interference from Radio Frequency Interference (RFI) or Electro Magnetic Interference (EMI). Because this device does not use copper conductors, you can be sure that there will be no loss of video quality or signal stability.
These HDMI2.0 optical fiber extenders are a reliable method of transmitting an uncompressed lossless HDMI signal over multimode optical fiber at 850nm. The transceiver is RoHS compliant and meets the requirements of Europe and China. This product is a great choice for a variety of uses including large-screen display, conferencing systems, and home entertainment. With its anti-interference ability, you can be sure that transmission of the signal is stable and secure.
MyVisual musical Optical Fiber HDMI2.0 Extender 3-in-1 supports HDMI2.0 video up to 4K/60Hz (Y:U:V 4:4:4) without any settings or adjustments necessary. It adopts WDM (Wavelength Division Multiplexing) technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber, with an amazing transmission distance of up to 300m! Furthermore, it features a standard HDMI2.0 connector, an integrated USB connector for power and low-cost LC optical connector for excellent anti-interference performance.
Moreover, MyVisual musical Optical Fiber HDMI2.0 Extender 3-in-1 also supports EDID, HDCP, and CEC transparent transmission, providing convenient and reliable audio/video signals transmission between digital HDTVs, projectors, STBs, monitors, and other similar devices.
| Type of Extender | Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI2.0 |
| Signal Support | HDMI 2.0 HDMI format standard |
| Video Support | 4K@60Hz/4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| EDID | Support |
| HDCP | Support |
| CEC | Support |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 18Gbps(6Gbps/CH) |
| Transmission Distance | OM4 Multi Mode, up to 984ft (300M) |
| Operating Temperature | -40°C to + 70°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX:150mA |
| Power Supply |
TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable |
| Power Consumption | TX: <800mW; RX: <400mW |
Our HDMI Fiber Extender offers a wide range of technical support and service. Our team of dedicated engineers are available to answer any questions you may have about the product and provide support for troubleshooting issues.
For general product information and support, our website provides detailed product descriptions, manuals, and troubleshooting guides. If you have any questions about any of these materials, our customer service team is available to answer them.
For more technical questions or issues, our customer service team is available via email or phone to provide assistance. We also offer remote support services, if needed, to help you resolve any issues quickly and efficiently.
If you need to return a product for any reason, our return policy is straightforward and easy to understand. We offer a full refund or exchange for any product purchased from us within 30 days of purchase. Returns must include the product and all accessories in the original packaging.
We hope you enjoy our HDMI Fiber Extender and thank you for choosing us for your technical support and service needs.
Our HDMI Fiber Extender is packaged in a secure box that includes the product, cables, power supply, and a user manual. The box is designed to protect the product during shipping.
We use high-quality shipping services to ensure that our customers receive their orders in the best condition. All orders are shipped with tracking information.
| Model | Description |
| LNK-108M | Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
