Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-HDE-60KVM
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: HDMI Extender over Cable Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
HDMI Extender Over CAT6 Cable |
Transmission Distance: |
60m Max |
Power Supply: |
DC 12V |
Data Rate: |
6.75Gbps |
Video Standards: |
HDMI 1.3, HDCP 1.3 |
Resolution: |
1920X1080@60Hz |
Warranty: |
1 Year Free Warranty |
Dimension: |
82*85*17mm |
Product Name: |
HDMI Extender Over CAT6 Cable |
Transmission Distance: |
60m Max |
Power Supply: |
DC 12V |
Data Rate: |
6.75Gbps |
Video Standards: |
HDMI 1.3, HDCP 1.3 |
Resolution: |
1920X1080@60Hz |
Warranty: |
1 Year Free Warranty |
Dimension: |
82*85*17mm |

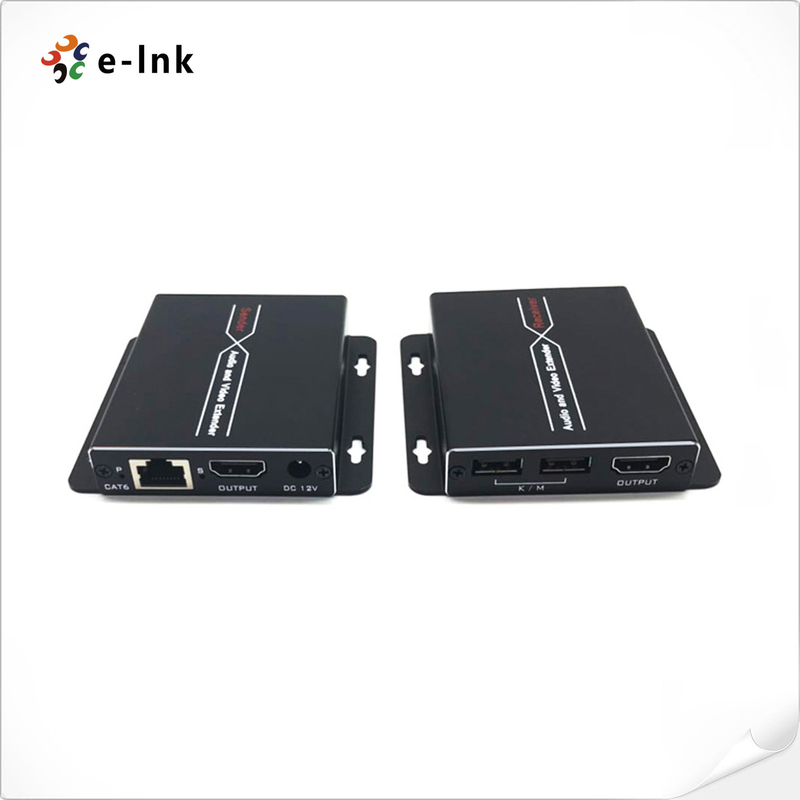

This HDMI Extender comprises a transmitter unit (TX) and a receiver unit (RX), which works as a pair. It allows for transmission and extension of uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, with a long transmission distance of up to 60 meters without any latency. The signal remains stable while the in-built EDID further improves the device's compatibility.
In addition, it supports keyboard & mouse remote control and local loop-out, as well as PoE to power the receiver (all you need to do is to connect power supply to the transmitter, and the receiver will then be powered through the network cable). This product is highly useful in applications like HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage due to its extended transmission range, low use cost, convenient installation, and above all, excellent compatibility. It is indeed an effective and reliable transmission method.
This unique and slim-designed aluminum shell provides excellent heat dissipation and a strong anti-interference construction. It can even be wall-mounted for more convenience. Its uncompressed, high-definition HDMI video and audio, that can be transmitted up to 60M over a single CAT6 cable, can support a video resolution up to 1920*1080@60Hz even in 3D signals. Moreover, other functions like a supports for keyboard and mouse remoter control, local HDMI loop-out, EDID, POC unilateral power supply, IEEE-568b connection and High compatibility are available.
Also, with the built-in automatic adjustment system, the image becomes incredibly smooth, clear, stable, without jitter or distortion, just how the customers would want it. Conforming to the HDMI 1.3 and HDCP 1.3 standard, this product provides the user with ultimate experience while being very reliable.
Video Standards: HDMI 1.3 and HDCP 1.3.
Maximum pixel clock: 165MHz.
Max Data Rate: 6.75Gbps.
Resolution: Maximum of 1920X1080@60Hz (backward-compatible).
Connector: HDMI-A.
Impedance: 100Ω.
USB Interface: PC: Standard MINI-USB or PS2, K/M: Standard USB, PS2 (optional).
USB Signal: HID Signal.
UTP Interface: RJ45.
Transmission Distance: CAT6 Max: 60m.
Power Supply: DC 12V.
Power Dissipation: Maximum of 4W.
Temperature: Operating -5℃ to +70℃.
Humidity: Operating 5% to 90%.
Dimension: 82*85*17mm.
Warranty: 1 Year Free Warranty.
We offer comprehensive technical support and service for our HDMI Extender products. We provide a wide range of services, including installation and setup, troubleshooting, product maintenance, and more.
Our product experts are available to help you get the most out of your HDMI Extender. We are available by phone, email, or online chat for any questions you may have about our products. Our knowledgeable staff is here to answer any of your questions and provide helpful solutions.
Our team of technicians can help you with any technical issues you may encounter. We provide fast and efficient service to make sure your HDMI Extender is running smoothly. Our technicians are experienced and knowledgeable in all aspects of our products.
We also offer on-site service for our HDMI Extender products. Our technicians can help you install and setup the product, as well as provide troubleshooting and maintenance. We are committed to providing the best service possible and ensuring your satisfaction.
Packaging and Shipping for HDMI Fiber Extender:
| Part No | Description of product |
| LNK-HDE-60KVM | 60M 1080P HDMI KVM Extender With Loop-out |
