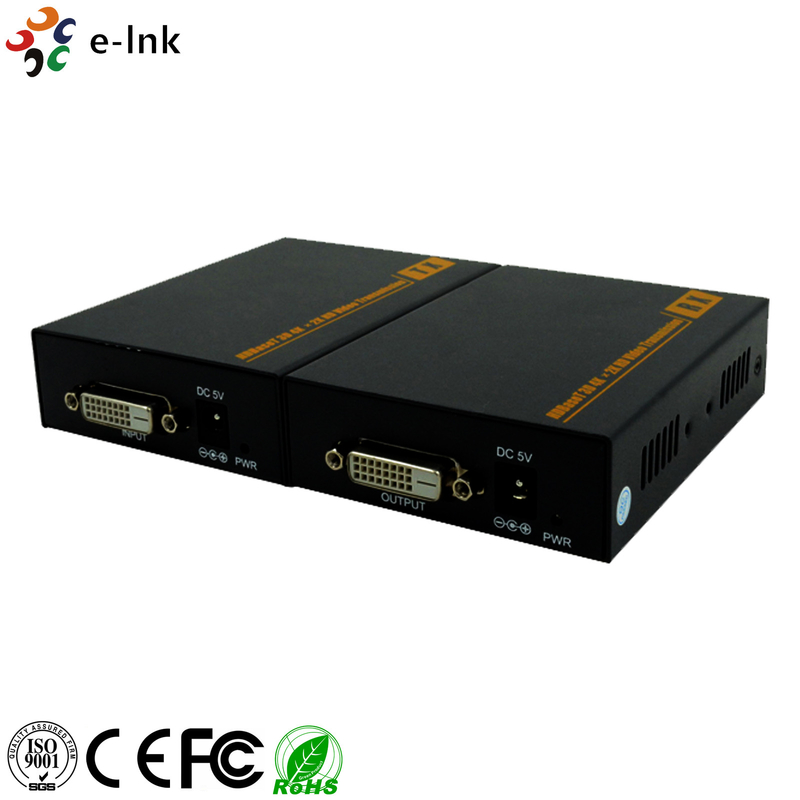

4K DVI KVM Extender Over Cat6/7 Cable Kit Transmitter Receiver 100 meters

Product Description:

The DVI KVM Extender provides extension of DVI signals over long distances through a single CAT6 cable. It supports incredibly high resolution: up to 4K*2K. Moreover, RS232 and KVM signals can be transmitted with powerful security and good stability.

The applications of the extender are vast due to its ability to transmit high resolution with high quality over long distance. In addition, its security and stability make it the perfect choice for all kinds of purposes requiring long distance transmission.

Features:

This device transmits DVI video signals up to 100m over a single CAT6 cable, reliably maintaining stable and clear resolutions up to 1920*1080P@60Hz and 4K*2K. It also supports HD BaseT technology, which allows for a comprehensive, across-the-board solution for data transmission via one cable.

This device is universally compatible, automatically detecting and matching source and display devices for smoother, sharper and more consistent output. Moreover, it also supports KVM, keyboard and mouse signal transmissions as well as bi-directional RS232 signal transmissions with a self-adaptive baud rate.

For safety, this device adheres to the DVI 1.0 and HDCP 1.2 standards as well as effectively guards against electromagnetic interference with its built-in ESD protection system. Installation as easy as one-two-three - simply plug and play.

Technical Parameters:

The product supports the following parameters and descriptions.

Video Standards: DVI 1.0; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 10.2Gbps
Resolution: 1920X1080P@60Hz, 4K*2K
Connector: DVI-D
Impedance: 100Ω

RS232 Interface: Industrial terminal
Signal direction: Bi-directional
Baud rate: Self-adaptive, Max: 115200bps
Data bits: 8

KVM Interface: PC: MINI-USB; Keyboard and mouse: USB-A
Ethernet Interface: RJ45
Transmission distance: 1080P: CAT6---100m; 4K*2K: CAT6---70m

Power supply: The power adapter: DC 5V/2A
Power dissipation: MAX 6W
Temperature: Operating: -5℃ ~ +70℃
Humidity: Operating: 5% ~ 90%
Dimension: 105*76*27mm
Warranty: 2-year

Charateristics:

Support and Services:

We provide comprehensive technical support and service for all of our DVI KVM Extender. Our team of highly skilled professionals can help you with installation, troubleshooting, and maintenance of our products.

We offer phone and email support, as well as on-site service. Our team is available 24/7 to answer any questions and help you keep your DVI KVM Extender running smoothly.

We also offer extended warranties, repair and maintenance services, and replacement parts to make sure your DVI KVM Extender are always in top condition.

Packing and Shipping:

DVI KVM Extender Packaging and Shipping:

• The product is packaged in a sturdy box, padded with bubble wrap and foam for protection.
• We use a reputable shipping company to ensure safe and timely delivery.
• The customer will receive an email with tracking information after the product has been shipped.
