Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-100G-SOA1310-1
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Optical Amplifier Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
Fiber Optical Amplifier |
Rate: |
10G/40G/100G |
Management: |
WEB, SNMP |
Wavelength: |
1310nm |
Operating Voltage: |
-48V DC Or 220VAC |
Size: |
1U 19 Inch |
Product Name: |
Fiber Optical Amplifier |
Rate: |
10G/40G/100G |
Management: |
WEB, SNMP |
Wavelength: |
1310nm |
Operating Voltage: |
-48V DC Or 220VAC |
Size: |
1U 19 Inch |

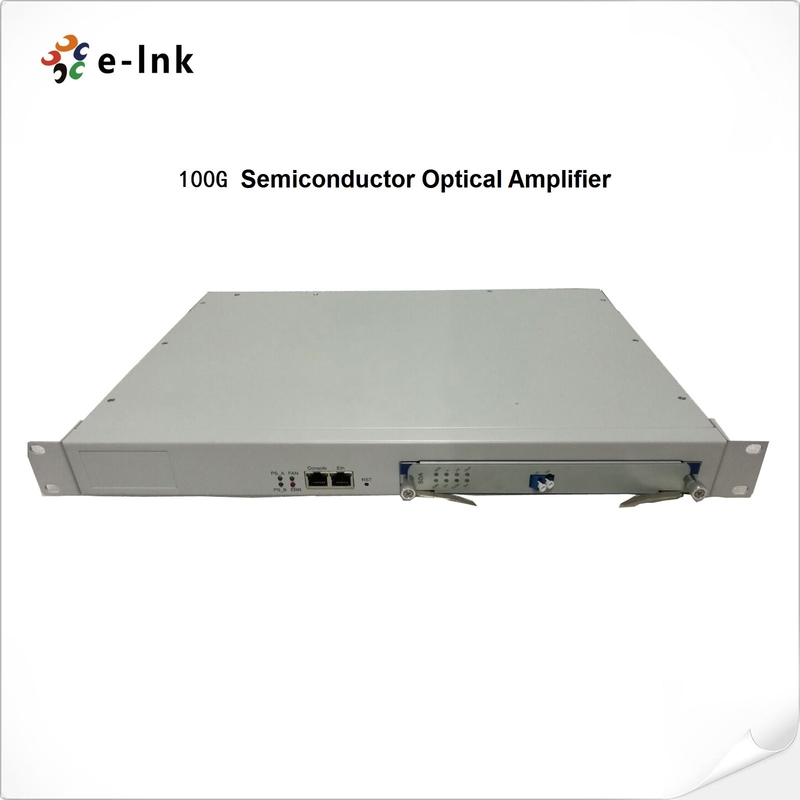

E-link Semiconductor Optical Amplifier products are designed for providing amplification around the 1310nm range. It can conveniently be used in 10G/40G/100G systems. It comes in three different versions - 1x1, 2x2, and 4x4 - respectively providing 1-way, 2-way, 4-way and 8-way 1310nm 100G optical signal amplification.
It offers maximum output power up to 10dBm.
The O-band module supports a frequency range of 1260-1340MHz, with a maximum output power of 10dBm. It has 3 working modes: ACC, APC and AGC, which are selectable for constant pump current, output power or gain. To ensure communication, quality supporting protocols have been integrated. The DB9 port is designed for RS232 communication while a RJ45 port facilitates SNMP functions. The module comes with dual power supply, either 220VAC or -48VDC, which can be chosen optionally.
This product is a 100G systems OBA (example). It has the following parameters:
| Parameters | Min | Typ | Max | Units | Remark |
|---|---|---|---|---|---|
| Operating Wavelength | 1290 | 1310 | 1330 | nm | |
| Port | 8 | port | 8 in put 8 out put | ||
| Input Power | -25 | -10 | dBm | ||
| Output Power | -8 | -2 | dBm | APC | |
| Polarization Dependent Gain | 2 | dB | |||
| Bias Current | 300 | 400 | mA | Single | |
| Gain Flatness | 2 | dB | |||
| Noise Figure | 7.5 | 8 | dB | input=-20dBm | |
| Uniformity | 1 | dB | |||
| Stability | 0.5 | dB | |||
| Working Temperature | 0 | 55 | ℃ | ||
| Storage Temperature | -40 | 85 | ℃ | ||
| Power | 40 | W | |||
| Control Mode | APC | ||||
| Operating Voltage | -48V DC or 220VAC | V | |||
| Size | 1U 19 inch | ||||
| Management | WEB, SNMP | ||||
| Rate | 10Gbps/40Gbps/100Gbps |
This product is of high quality and easy to use, with excellent noise figure, uniformity and stability.
We provide technical support and services for all our Fiber Optic Accessories products. Our team of knowledgeable and experienced technicians are available to answer any questions or provide advice on installation, maintenance and troubleshooting.
We also offer comprehensive repair services for all our Fiber Optic Accessories products. Our technicians can inspect, diagnose and repair any issues you may have with your Fiber Optic Accessories. We use the latest technology and advanced tools to ensure your products are repaired quickly and effectively.
Our technical support and services are offered 24/7 and our team is always ready to help. If you need any assistance with your Fiber Optic Accessories, please don't hesitate to contact us.
Fiber Optic Amplifier are packaged and shipped in sturdy, specialized boxes designed to provide adequate protection during transit. The boxes are also labeled with the product information and a tracking number so that the shipment can be tracked while in transit.
The packages are also carefully sealed to ensure that no damage occurs during transit. Additionally, all packages are shipped with insurance, helping to guarantee that any damaged or missing items are quickly replaced.
| Model | Description |
| LNK-100G-SOA1310-1 | 100G Semiconductor Optical Amplifier, 1310nm, 1CH |
| LNK-100G-SOA1310-2 | 100G Semiconductor Optical Amplifier, 1310nm, 2CH |
| LNK-100G-SOA1310-4 | 100G Semiconductor Optical Amplifier, 1310nm, 4CH |
| LNK-100G-SOA1310-8 | 100G Semiconductor Optical Amplifier, 1310nm, 8CH |
